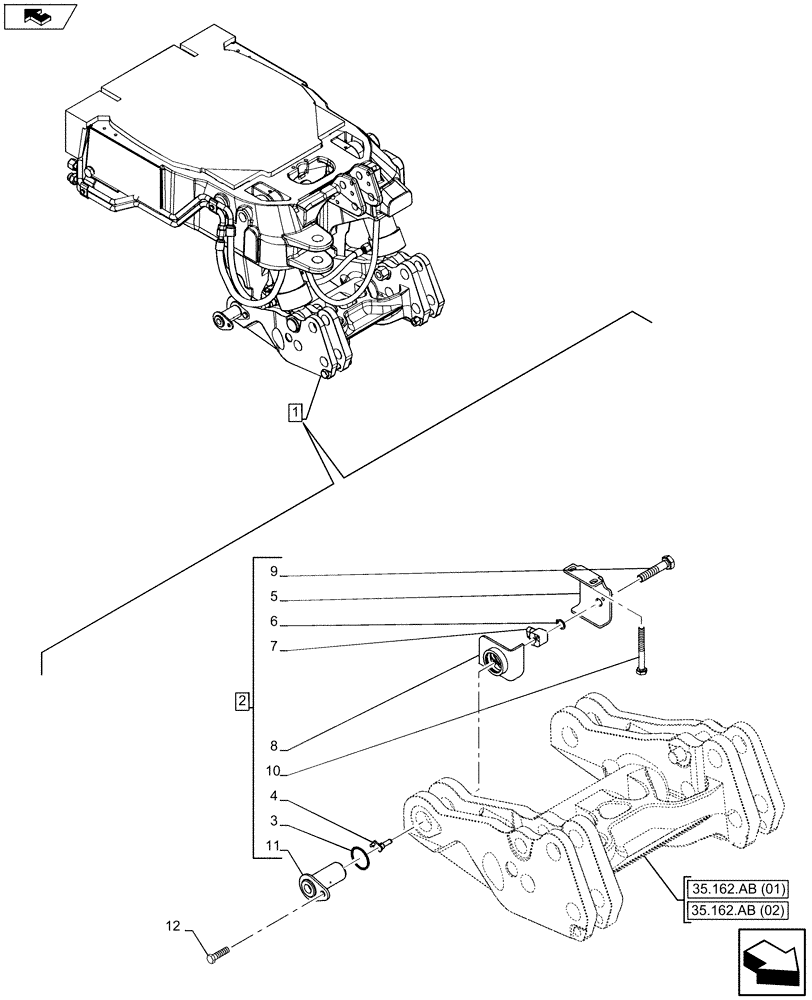

Запчасти Case IH MAXXUM 120 (55.160.AP[01]) - VAR - 334648, 335831, 337831, 743699, 743700 - HYDRAULIC LIFT, SENSOR, ANGLE (55) - ELECTRICAL SYSTEMS

1

87563272

HITCH

ASSY, Incl 2 - 12

1шт.

See Hitch Assy Components also in Figures 35.160.AK (03), 35.160.AK (04), 35.162.AB (02)

1шт.

2

87643927

SENSOR

ASSY, Incl 3 - 11

1шт.

3

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

5198408

CONTROL

1шт.

5

87643926

SUPPORT

1шт.

6

11087974

CIRCLIP,Ext., M8, DAC

1шт.

7

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

8

47057598

BRACKET

1шт.

9

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

11

47057595

PIN,40mm OD x 104mm L

1шт.

12

11103021

BOLT,Hex, M10 x 18mm, Cl 8.8, Full Thd

2шт.
