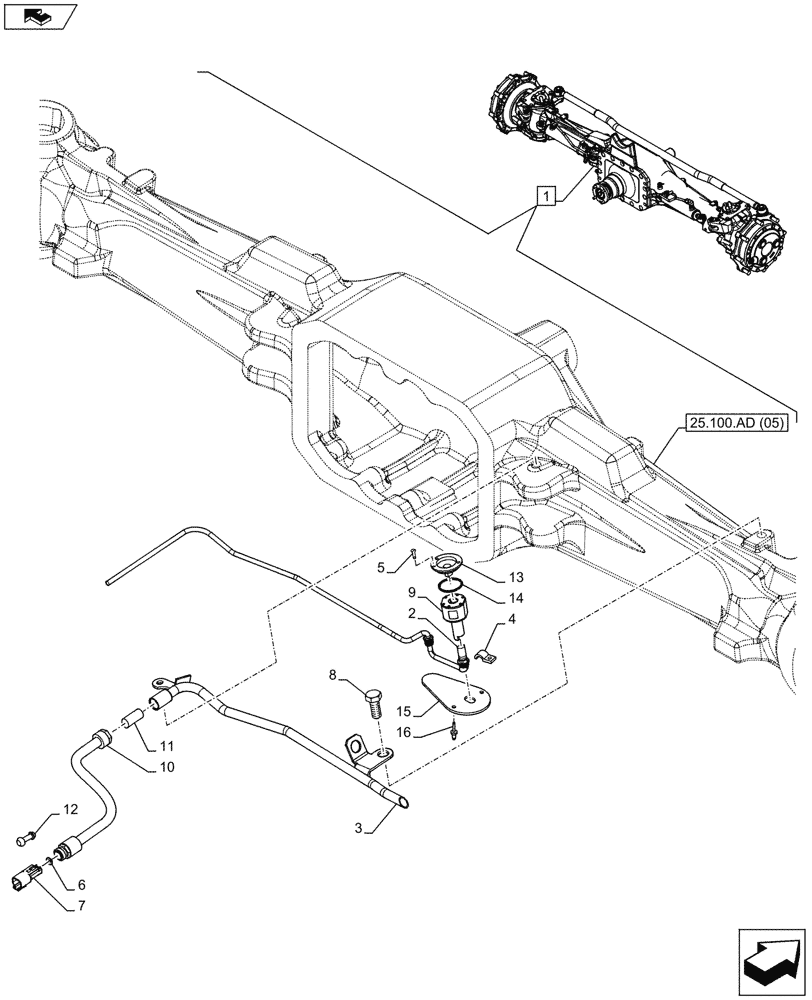

Запчасти Case IH MAXXUM 120 (55.047.AA[05]) - VAR - 330429 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

1

87745936

LIVE FRONT AXLE

ASSY, Incl 2 - 16

1шт.

See also Axle Components in Figure 25.100.AA (05), 25.100.AD (05), 25.102.AC (11), 25.102.AE (02), 25.108.AA (05), 25.108.AB (06), 25.108.AB (07), 25.108.AG (05), 25.108.AN (05), 41.106.AD (02), 41.216.AN (06), 41.216.AV (05)

1шт.

2

87616286

ELEC CONNECTOR

Male

1шт.

3

87717195

TUBE,12.00mm OD x 354.00, 77.00mm

Steering Sensor

1шт.

4

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

5

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

6

82918451

SPACER

1шт.

7

82918426

ELEC CONNECTOR,Female

1шт.

8

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

9

87627614

SENSOR

Steering Sensor

1шт.

10

82016109

FLEXIBLE SHEATH

1шт.

11

87329095

HOSE PROTECTION

Termoreduction, 100mm

1шт.

12

82918419

PLUG

1шт.

13

84384510

TOP

1шт.

14

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

15

87315098

SHIELD

1шт.

16

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.
