(41.432.AC[04]) - VAR - 335077, 391658 - AUTOGUIDANCE, VALVE, STEERING LINE, FRONT AXLE

Запчасти Case IH MAXXUM 120 (41.432.AC[04]) - VAR - 335077, 391658 - AUTOGUIDANCE, VALVE, STEERING LINE, FRONT AXLE (41) - STEERING

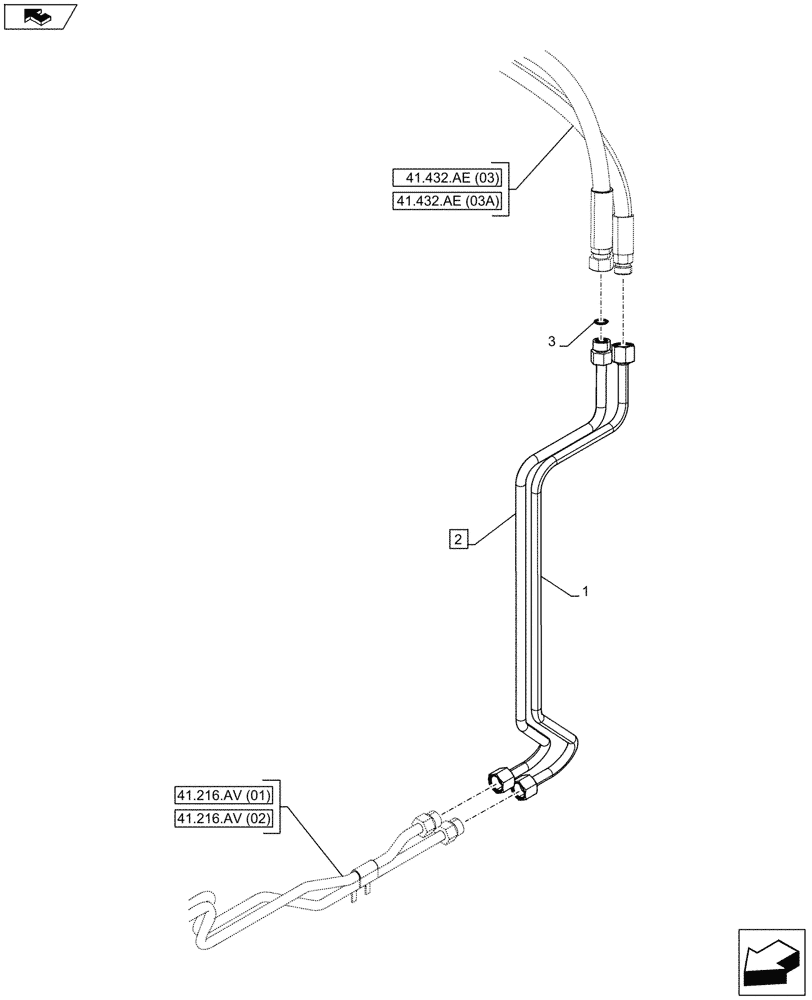

Схема запчастей Case IH MAXXUM 120 - (41.432.AC[04]) - VAR - 335077, 391658 - AUTOGUIDANCE, VALVE, STEERING LINE, FRONT AXLE (41) - STEERING
41.432.ae (03a)
2
1
home
3
41.216.av (01)
41.216.av (02)
41.432.ae (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47706066

PIPE

LH, Steering to Standard Axle

1шт.

2

87534996

RIGID TUBE,8 mm ID x 10 mm OD x 498, 76 mm L

RH, Steering to Standard Axle, Incl 3

1шт.

3

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
