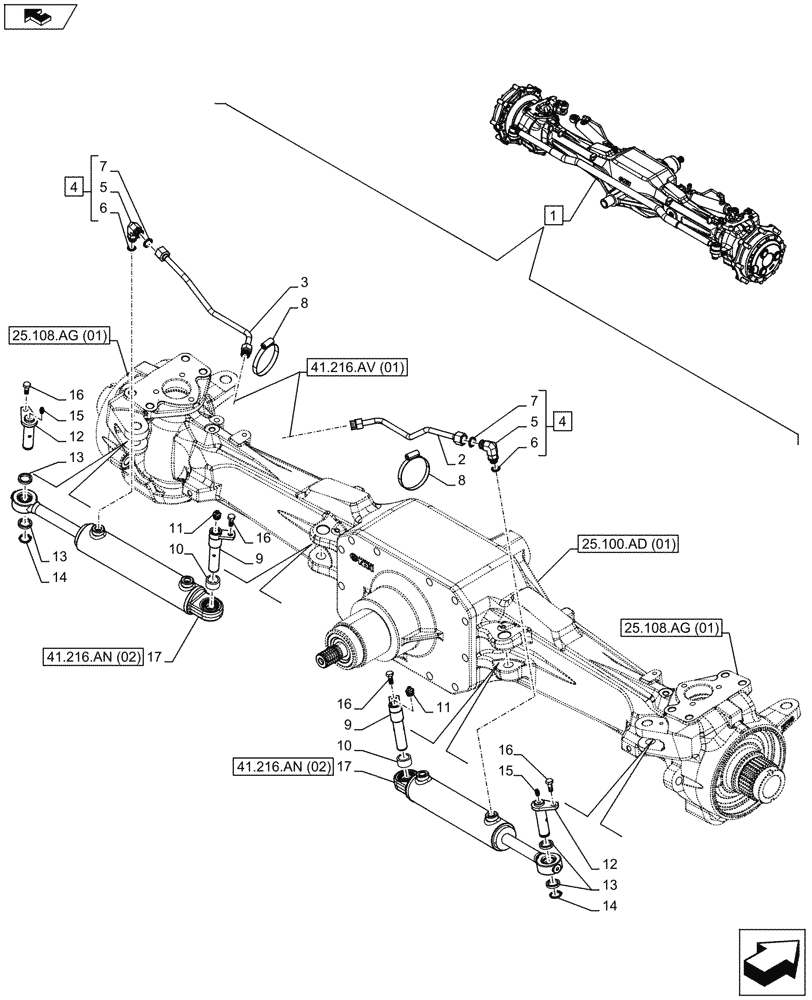

Запчасти Case IH MAXXUM 120 (41.216.AN[01]) - VAR - 390409 - CLASS 3, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING CYLINDER (41) - STEERING

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 17

1шт.

See also Axle Components in Figure 25.100.AA (01), 25.100.AD (01), 25.102.AC (01), 25.102.AD (01), 25.102.AS (01), 25.108.AA (01), 25.108.AB (01), 25.108.AB (02), 25.108.AG (01), 25.108.AN (01), 41.106.AD (01), 55.047.AA (01)

1шт.

2

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

RH Steering Cylinder

1шт.

3

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH Steering Cylinder

1шт.

4

47127165

90 ELBOW

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

8

13000990

COLLAR,60mm - 80mm, Worm Gear

60mm ID x 80mm

2шт.

9

5142048

PIN,19.98mm x 107.00mm

2шт.

10

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

11

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

12

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

13

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

14

11066876

SNAP RING,M20, Ext

2шт.

15

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

87521950

SERVO STEERING CYL

ASSY

2шт.
