Запчасти Case IH MAXXUM 120 (41.101.AB[03]) - VAR - 330631, 336631, 743723 - FAST STEERING - STEERING COLUMN (41) - STEERING

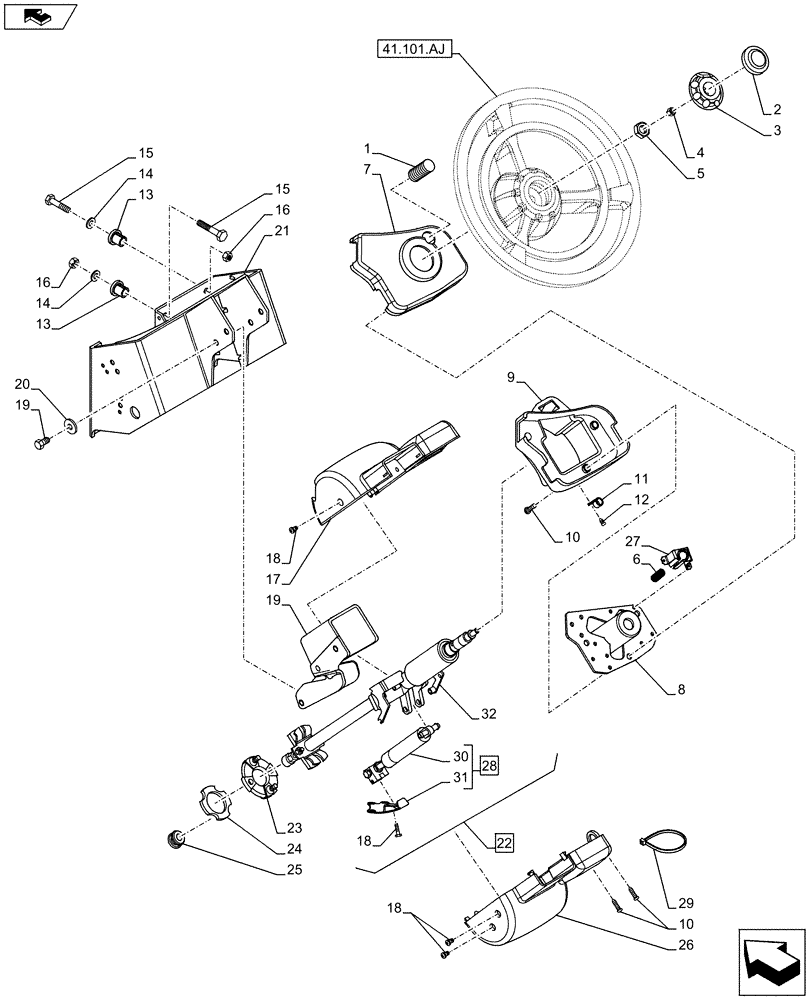

Схема запчастей Case IH MAXXUM 120 - (41.101.AB[03]) - VAR - 330631, 336631, 743723 - FAST STEERING - STEERING COLUMN (41) - STEERING
41.101.aj
24
20
15
14
19
29
32
4
13
11
13
2
8
14
26
23
3
18
1
15
25
16
5
18
22
10
30
6
21
10
home
19
27
18
31
16
17
9
28
12
7

Артикул

Название

Примечание

Количество

1

13802121

SCREW,M4 x 5mm, Cl 8.8

1шт.

2

47136225

PLUG

1шт.

3

87350612

KNOB

1шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

5

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

6

82012555

SPRING

1шт.

7

87569648

COVER

1шт.

8

87710001

SUPPORT

1шт.

9

87568062

COVER

1шт.

10

83990793

SELF-TAP SCREW,Oval Cross, #10-16 x 1 1/4"

5шт.

11

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

12

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

4шт.

13

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

15

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

16

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

17

82036446

COVER

1шт.

18

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

7шт.

19

87709998

SUPPORT

1шт.

20

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

21

87579189

SUPPORT

1шт.

22

47383940

STEERING COLUMN,Tilting, Telescoping

ASSY, Incl 8, 19, 23, 28, 32

1шт.

23

87521601

FLEXIBLE COUPLING

1шт.

24

81873344

RUBBER INSULATOR

1шт.

25

82009429

ISOLATOR

4шт.

26

82036756

COVER

1шт.

27

47390158

BRACKET

1шт.

28

84599544

GAS STRUT

ASSY, Incl 30, 31

1шт.

29

14560287

CABLE TIE,207.00mm L

1шт.

30

NSS

NOT SOLD SEPARAT

Gas Strut, Incl in 28

1шт.

31

84578684

LEVER

1шт.

32

NSS

NOT SOLD SEPARAT

Steering Column, Incl in 22

1шт.

Выбрано товаров: 32
