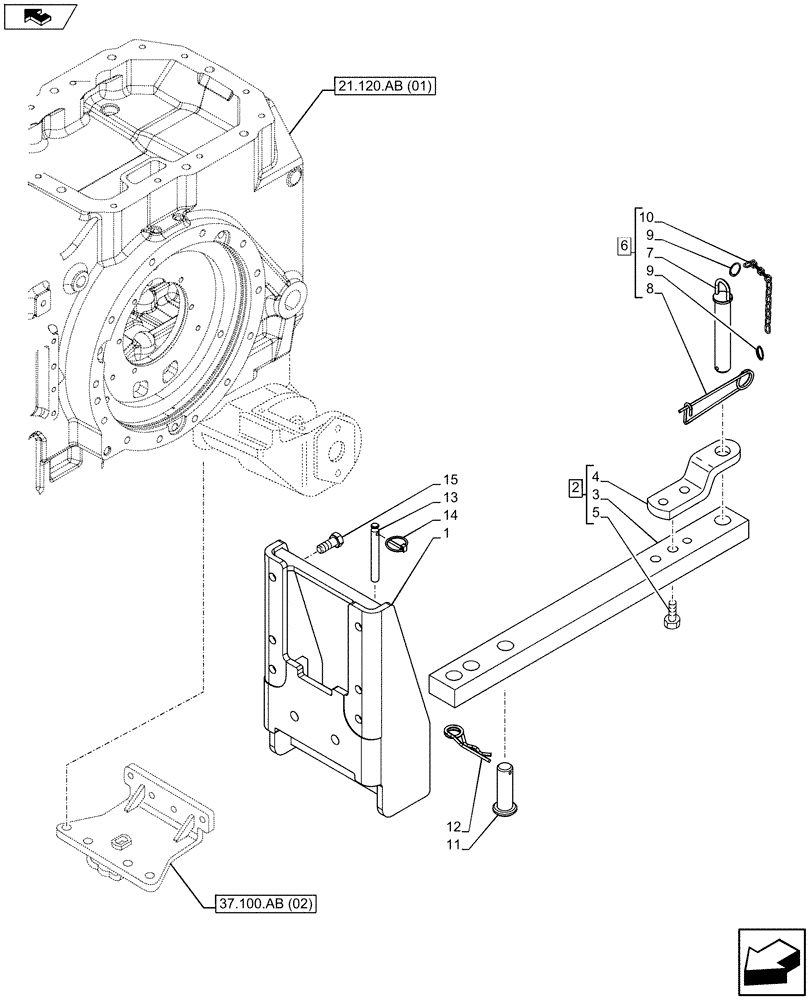

Запчасти Case IH MAXXUM 120 (37.100.AB[04]) - VAR - 330937 - DRAWBAR SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87633843

SUPPORT

1шт.

2

87558075

DRAWBAR

Assy, Incl 3 -5

1шт.

3

82014740

SUPPORT

1шт.

4

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

5

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

6

87579063

HITCH PIN,32mm OD x 182mm L

Assy, Incl 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

Pin, Incl in 6

1шт.

8

5152004

HAIR PIN COTTER,195mm L

1шт.

9

44901192

SNAP RING,25mm ID

1шт.

10

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

11

87558070

PIN,32mm OD x 124mm L

1шт.

12

82000094

SPRING,40mm OD x 142mm L

1шт.

13

82015207

PIN,16mm OD x 141mm L

2шт.

14

82014909

LOCK PIN,5.5mm OD

2шт.

15

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

6шт.
