(33.224.AQ[02]) - VAR - 332739 - PNEUMATIC TRAILER BRAKE - QUICK COUPLERS AND LINES

Запчасти Case IH MAXXUM 120 (33.224.AQ[02]) - VAR - 332739 - PNEUMATIC TRAILER BRAKE - QUICK COUPLERS AND LINES (33) - BRAKES & CONTROLS

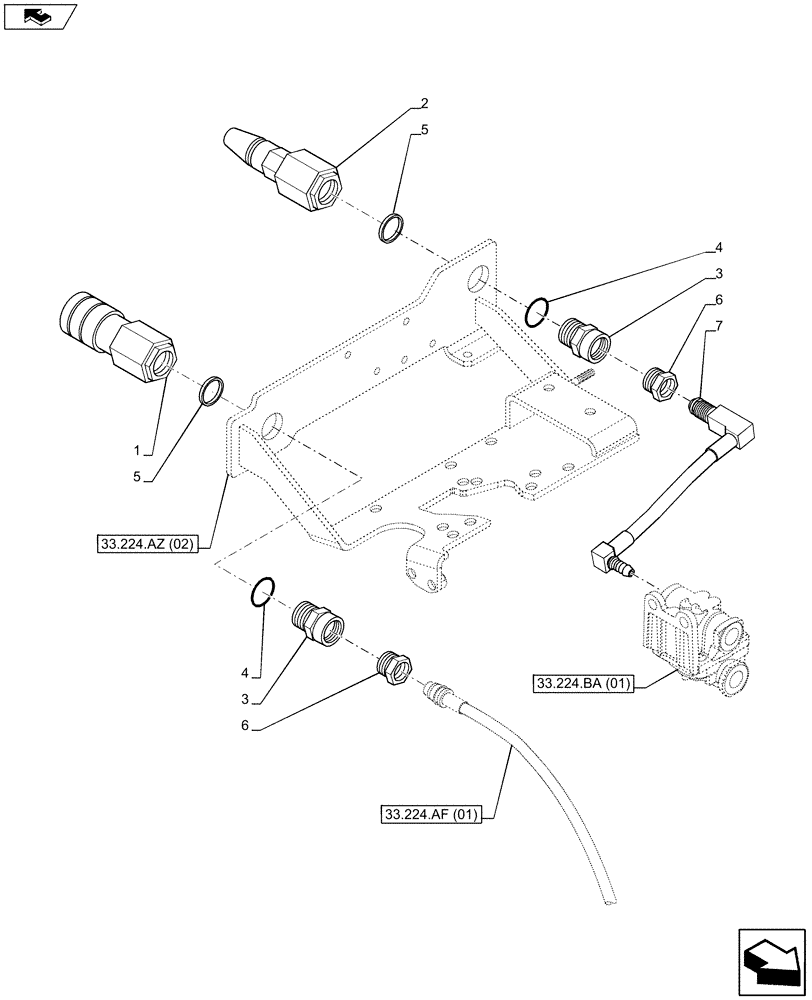

Схема запчастей Case IH MAXXUM 120 - (33.224.AQ[02]) - VAR - 332739 - PNEUMATIC TRAILER BRAKE - QUICK COUPLERS AND LINES (33) - BRAKES & CONTROLS
4
2
3
3
33.224.az (02)
5
5
33.224.ba (01)
6
6
33.224.af (01)
4
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87679175

PUSH-PULL COUPLING

1шт.

2

87679176

PUSH-PULL COUPLING

1шт.

3

87679177

ADAPTER

2шт.

4

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

5

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

6

82034157

ADAPTER

2шт.

7

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

1шт.

Выбрано товаров: 7
