Запчасти Case IH MAXXUM 120 (25.108.AG[05]) - VAR - 330429 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

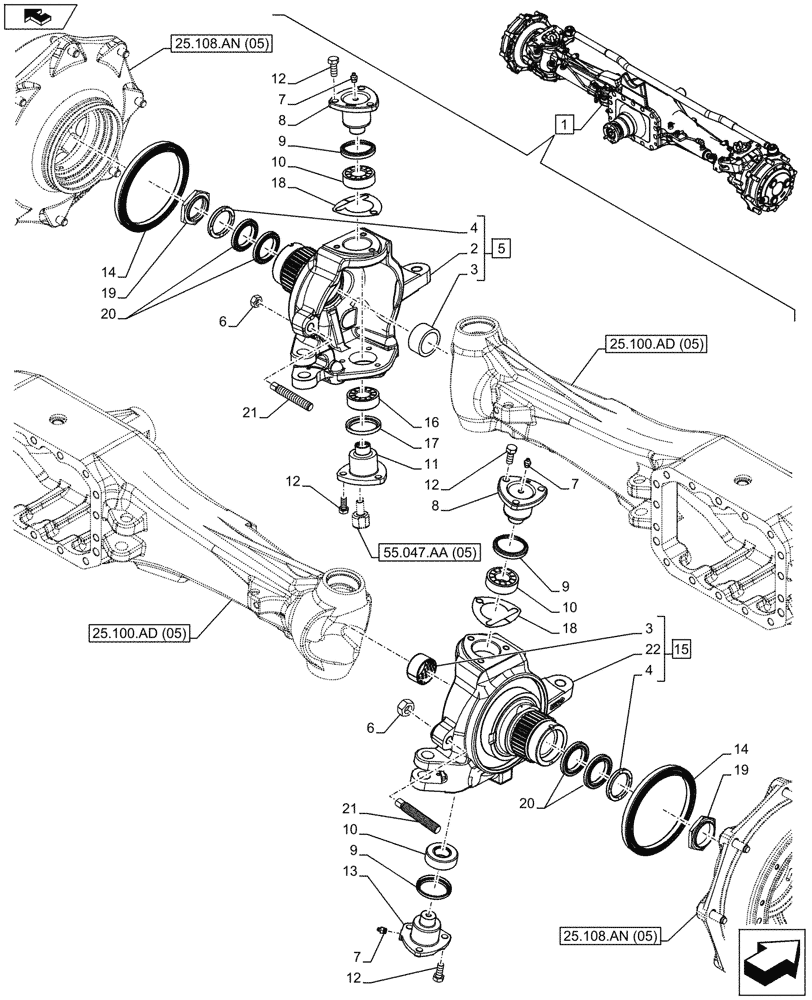

Схема запчастей Case IH MAXXUM 120 - (25.108.AG[05]) - VAR - 330429 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
25.100.ad (05)
19
3
10
14
3
6
1
20
9
10
14
16
22
7
20
4
9
12
17
11
10
5
18
21
9
home
8
2
6
12
7
13
18
13
7
21
4
15
19
12
12
55.047.aa (05)
8
25.108.an (05)
25.108.an (05)
25.100.ad (05)

Артикул

Название

Примечание

Количество

1

87745936

LIVE FRONT AXLE

ASSY, Incl 2 - 22

1шт.

See also Axle Components in Figure 25.100.AA (05), 25.100.AD (05), 25.102.AC (11), 25.102.AE (02), 25.108.AA (05), 25.108.AB (06), 25.108.AB (07), 25.108.AN (05), 41.106.AD (02), 41.216.AN (06), 41.216.AV (05), 55.047.AA (05)

1шт.

2

NSS

NOT SOLD SEPARAT

Knucle, Incl in 5

1шт.

3

84409817

BUSHING,52mm ID x 56mm OD x 28mm L

2шт.

4

87592390

BUSHING,53mm ID x 68mm OD x 7.7mm L

2шт.

5

87330054

STEERING KNUCKLE

ASSY, LH, Incl 2, 3 (Qty 1), 4 (Qty 1)

1шт.

6

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

7

13407211

LUBE NIPPLE,M10 x 1

3шт.

8

87333763

BALL STUD

2шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

10

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

11

87382577

BALL STUD

1шт.

12

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

13

87361688

BALL STUD

1шт.

14

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

2шт.

15

87330073

STEERING KNUCKLE

ASSY, RH, Incl 3 (Qty 1), 4 (Qty 1), 22

1шт.

16

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

17

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

18

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

18

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

18

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

18

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

18

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

19

5141692

NUT,M90 x 2

2шт.

20

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

4шт.

21

87471124

STUD,M18

2шт.

22

NSS

NOT SOLD SEPARAT

Knucle, Incl in 15

1шт.

Выбрано товаров: 27
