Запчасти Case IH MAXXUM 120 (25.108.AG[03]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

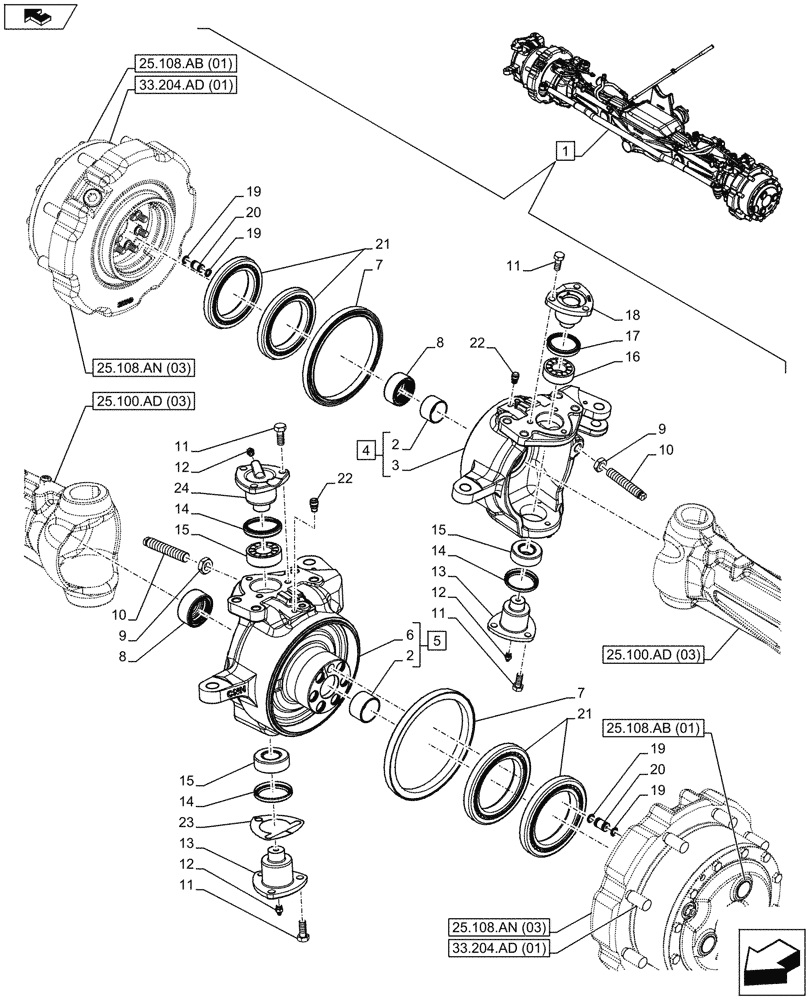

Схема запчастей Case IH MAXXUM 120 - (25.108.AG[03]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
33.204.ad (01)
19
24
13
1
22
2
21
20
14
7
15
11
7
14
15
4
9
21
19
10
23
16
19
home
12
20
15
18
22
3
8
13
5
8
6
12
2
17
10
9
14
11
19
12
11
11
25.108.ab (01)
25.108.ab (01)
25.108.an (03)
25.100.ad (03)
25.100.ad (03)
25.108.an (03)
33.204.ad (01)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 24

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (03), 25.108.AB (01), 25.108.AN (03), 33.204.AD (01), 33.204.AD (02), 41.106.AD (01), 41.216.AN (04), 55.047.AA (03)

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

2шт.

3

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 4

1шт.

4

84197134

KNUCKLE

ASSY, RH, Incl 2 (Qty 1), 3

1шт.

5

84197105

KNUCKLE

ASSY, LH, Incl 2 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 5

1шт.

7

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

2шт.

8

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

9

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

10

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

11

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

13407211

LUBE NIPPLE,M10 x 1

3шт.

13

87333763

BALL STUD

2шт.

14

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

15

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

16

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

17

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

18

87382577

BALL STUD

1шт.

19

14456980

O-RING,10.77mm ID x 2.62mm

4шт.

20

5173504

PAWL,16mm OD x 25mm L

2шт.

21

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

4шт.

22

13413290

BREATHER

2шт.

23

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

23

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

23

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

23

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

23

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

24

87361688

BALL STUD

1шт.

Выбрано товаров: 29
