(25.102.AT[02]) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK PIPE

Запчасти Case IH MAXXUM 120 (25.102.AT[02]) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK PIPE (25) - FRONT AXLE SYSTEM

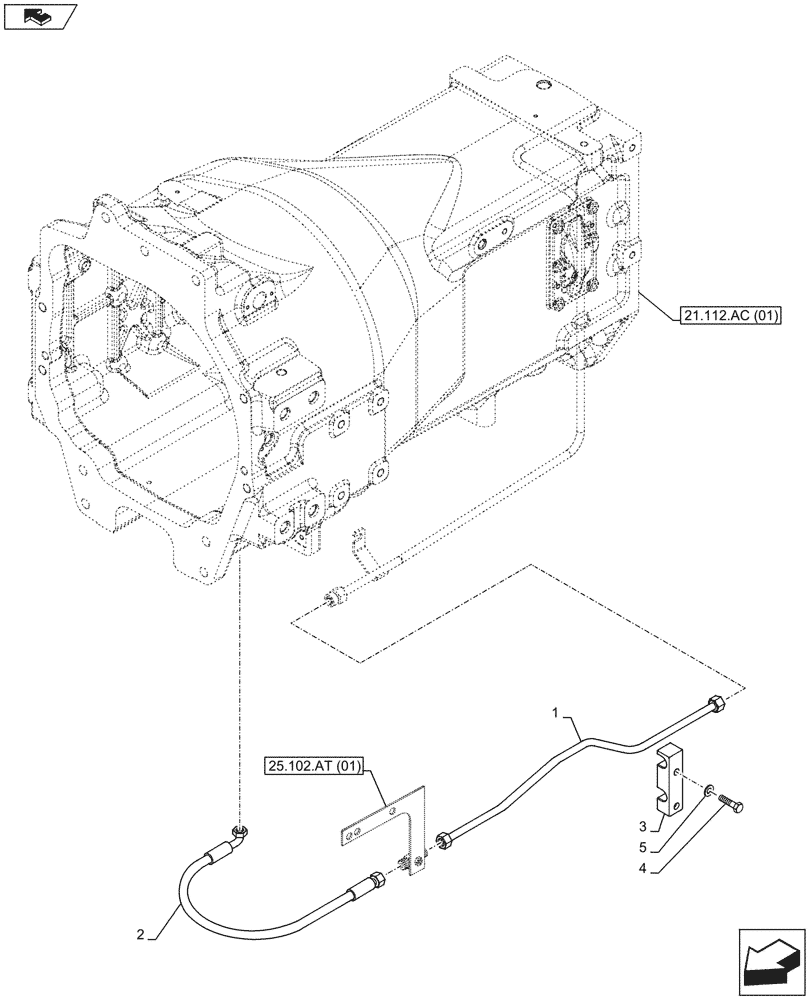

Схема запчастей Case IH MAXXUM 120 - (25.102.AT[02]) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK PIPE (25) - FRONT AXLE SYSTEM
25.102.at (01)
1
5
21.112.ac (01)
2
home
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87543758

TUBE,8 mm ID x 10 mm OD x 410, 315 mm L

1шт.

2

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

1шт.

3

82029228

CLAMP,2 Hoses

1шт.

4

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.
