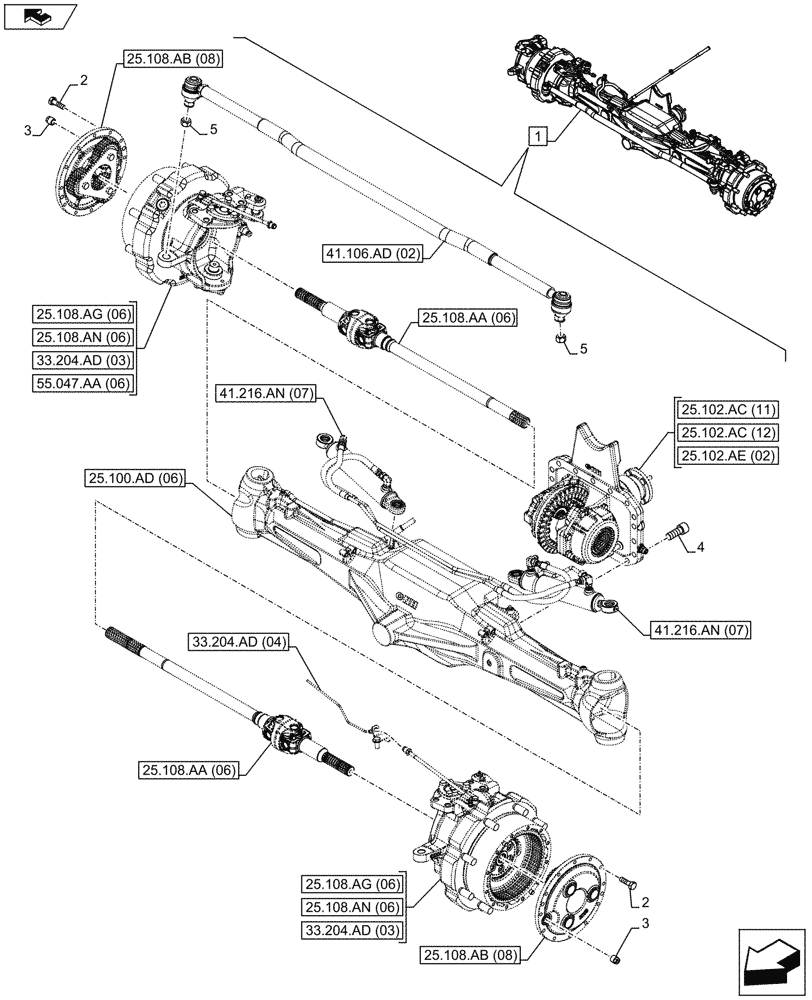

Запчасти Case IH MAXXUM 120 (25.100.AA[06]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES (25) - FRONT AXLE SYSTEM

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 5

1шт.

See also Axle Components in Figure 25.100.AD (06), 25.102.AC (11), 25.102.AE (02), 25.108.AA (06), 25.108.AB (08), 25.108.AG (06), 25.108.AN (06), 33.204.AD (03), 33.204.AD (04), 41.106.AD (02), 41.216.AN (07), 41.216.AV (06), 55.047.AA (06)

1шт.

2

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

3

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

4

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

4шт.

5

12575021

NUT,M18 x 1.5, Cl 10

2шт.
