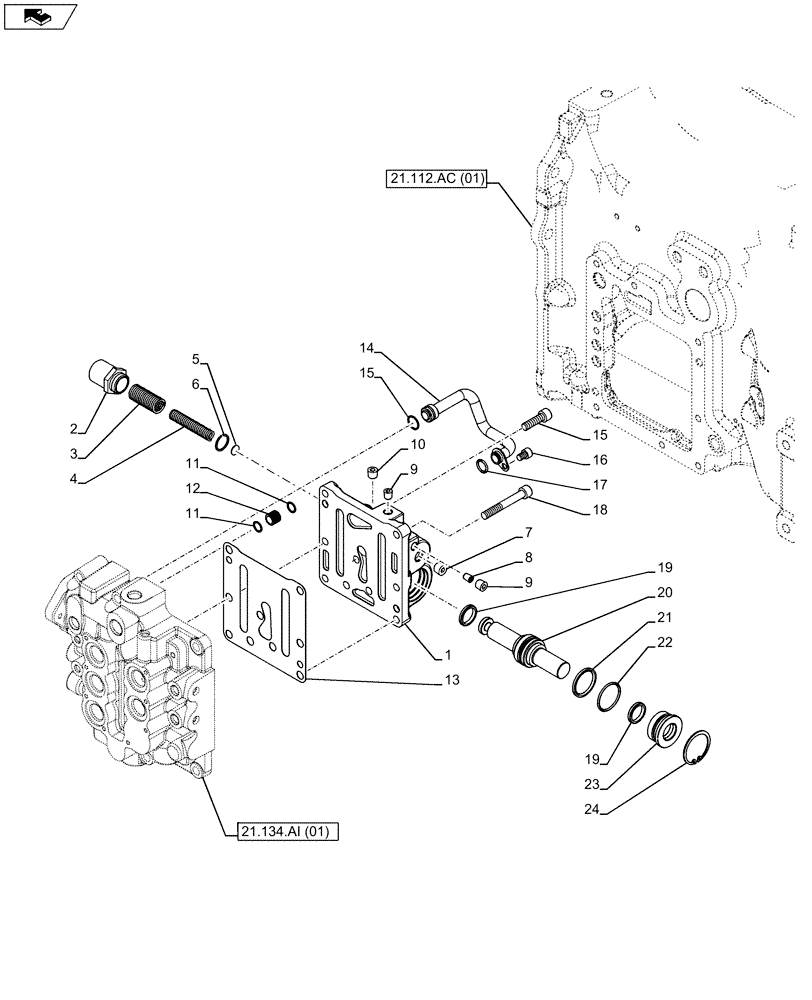

Запчасти Case IH MAXXUM 120 (21.134.AI[02]) - VAR - 390283 - GEARBOX, SOLENOID VALVE (21) - TRANSMISSION

1

87719634

DISTRIBUTOR

ASSY, Incl 2 - 10

1шт.

2

5121313

PLUG,36mm OD

1шт.

3

5114391

SPRING,14mm OD x 100mm L

1шт.

4

5114392

SPRING,21.5mm OD x 84.5mm L

1шт.

5

12638121

WASHER,5.15mm ID x 14mm OD x 1mm Thk

1шт.

6

5114438

SNAP RING,1.2mm Thk, Ext

1шт.

7

10269504

PLUG,M14 x 1.5

1шт.

8

87634955

ORIFICE,M8 x 1.25 x 2mm ID x 11mm L

1шт.

9

10269401

PLUG,Taper Thd, Hex Skt, M12 x 1.5 x 11mm, 4.8

2шт.

10

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

11

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

6шт.

12

5172178

UNION,11mm ID x 14mm L

3шт.

13

87725760

GASKET,0.5mm Thk

1шт.

14

87722691

TUBE

1шт.

15

14307620

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

15

14453480

O-RING,17.17mm ID x 1.78mm

1шт.

16

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

18

14309124

SCREW,Hex Soc Hd, M10 x 1.25 x 75, 8.8

1шт.

19

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

20

84143472

SPOOL,24mm OD x 152mm L

1шт.

21

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

1шт.

22

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

23

84378612

PLUG,42mm ID

1шт.

24

11060276

SNAP RING,M47, Int

1шт.
