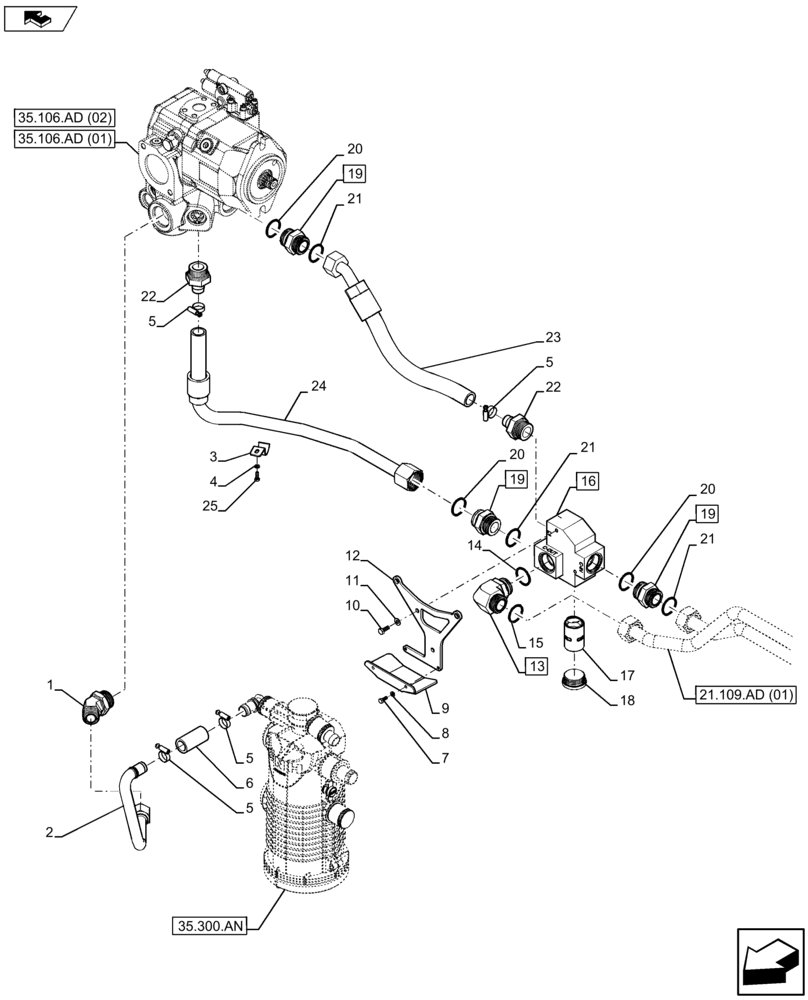

Запчасти Case IH MAXXUM 120 (21.109.AD[02]) - VAR- 390283 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

1

87653734

45 ELBOW,1-7/16"-12 ORFS x M42 x 2 ORB

1шт.

2

84140156

PRESSURE PIPE

Pressure, G Port

1шт.

3

84402876

BRACKET

1шт.

4

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

5

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

6

87653735

HOSE,25mm ID x 70mm L

1шт.

7

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

47523340

COVER

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

2шт.

12

47514515

BRACKET

1шт.

13

86579700

ELBOW,90 Degree, 1 11/16"-12 ORFS x M42 x 2 ORB

ASSY, Incl 14 - 15

1шт.

14

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

15

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

16

47514516

BLOCK

ASSY, Incl 17 - 18

1шт.

17

84467905

THERMOSTAT

1шт.

18

970423

SCREW

1шт.

19

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

ASSY, Incl 20 - 21

3шт.

20

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

21

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

22

84252094

HYD CONNECTOR,M42 X 2 x 22mm

2шт.

23

47510447

HYDRAULIC HOSE,25.4mm ID x 470mm L

Rear Cooler IN

1шт.

24

47510453

HYD TUBE

Rear Cooler OUT

1шт.

25

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.
