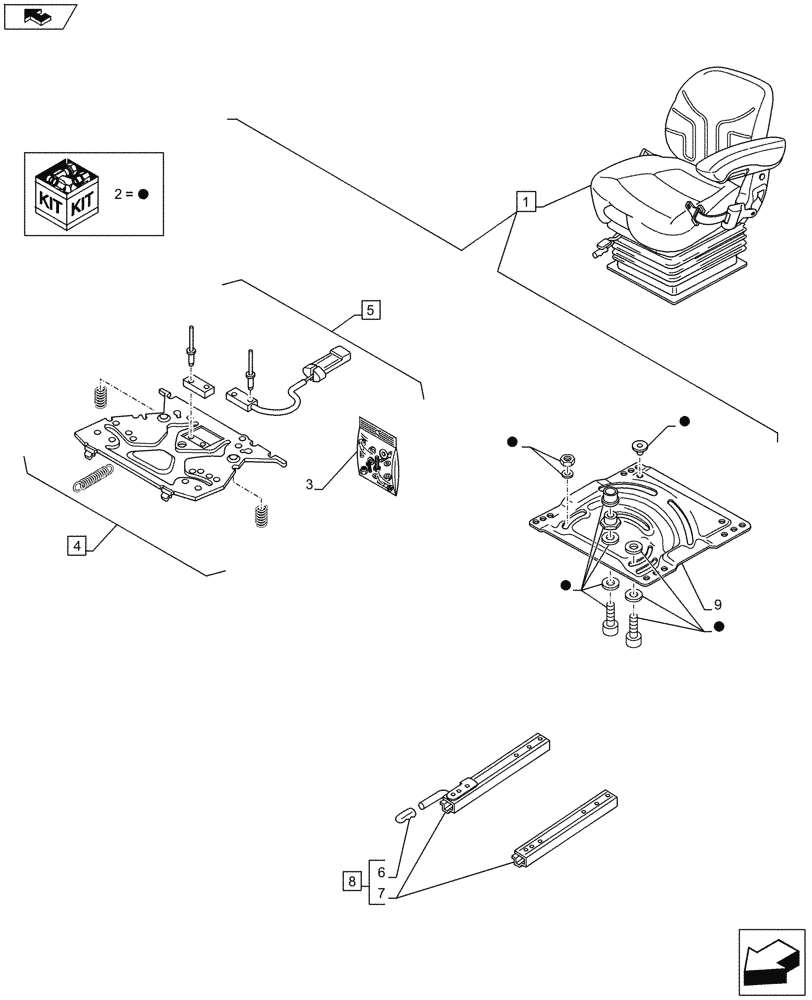

Запчасти Case IH MAXXUM 120 (90.120.AM[01A]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - BEGIN YR 03-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47488675

DRIVER SEAT

1шт.

2

1-34-751-712

SET OF PARTS

1шт.

3

84191201

SET OF PARTS

SMALL PARTS SEAT SWITCH

1шт.

4

84253109

COMPENSATOR

ASSY, Incl 3

1шт.

5

84180174

SWITCH

ASSY, Incl 3

1шт.

6

9971715

HANDLE

1шт.

7

NSS

NOT SOLD SEPARAT

Incl 8

1шт.

8

87331929

SET OF PARTS

ASSY, Incl 6 - 7

1шт.

9

84247568

REPAIR KIT

ASSY, Incl 2

1шт.
