Запчасти Case IH MAXXUM 120 (90.120.AE[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - END YR 02-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

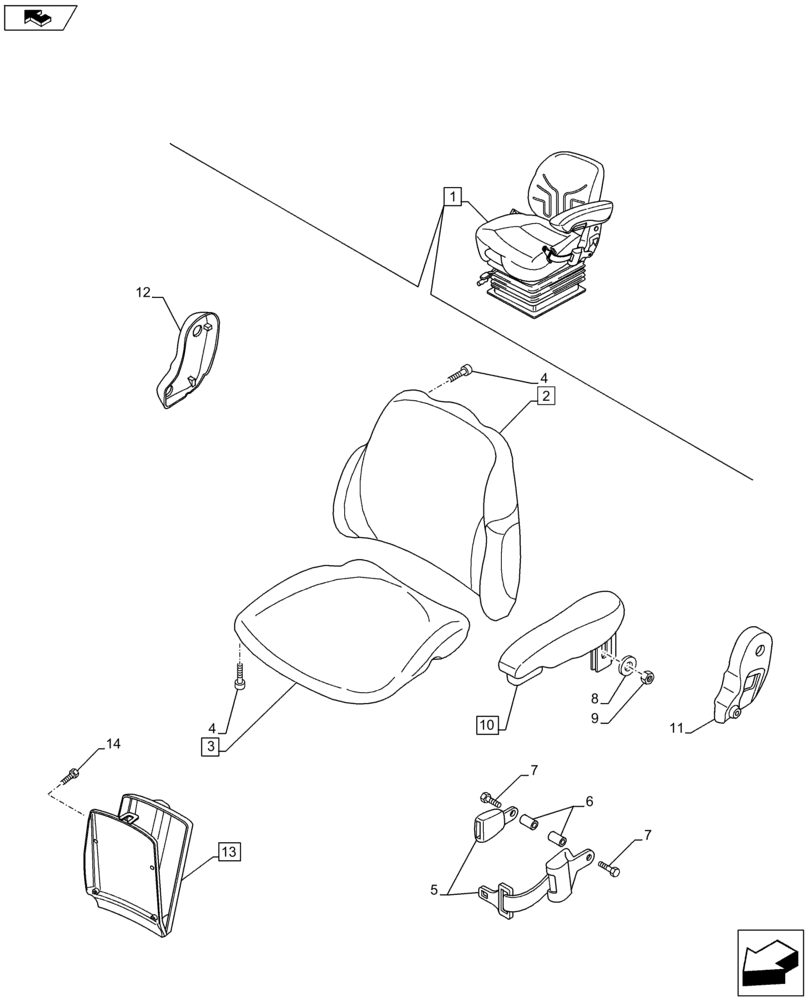

Схема запчастей Case IH MAXXUM 120 - (90.120.AE[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - END YR 02-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
2
6
14
10
1
13
9
5
7
12
3
11
8
4
home
4

Артикул

Название

Примечание

Количество

1

84122199

DRIVER SEAT

1шт.

2

84253107

CUSHION

ASSY, Incl 4 (Qty 4)

1шт.

3

84172428

SEAT CUSHION

ASSY, Incl 4 (Qty 3)

1шт.

4

82034997

SCREW,M5 x 25mm

7шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

84171407

BUSHING

2шт.

7

82034885

SCREW,7/16" - 20 x 35"

2шт.

8

9960692

WASHER

1шт.

9

82034880

NUT,M8

1шт.

10

82034988

ARMREST

ASSY, Incl 8, 9

1шт.

11

87331931

COVER

SX

1шт.

12

82023115

COVER

DX

1шт.

13

71491415

UTILITY HOLDER

ASSY, Incl 14

1шт.

14

82034863

SCREW,M4 x 8mm

3шт.

Выбрано товаров: 14
