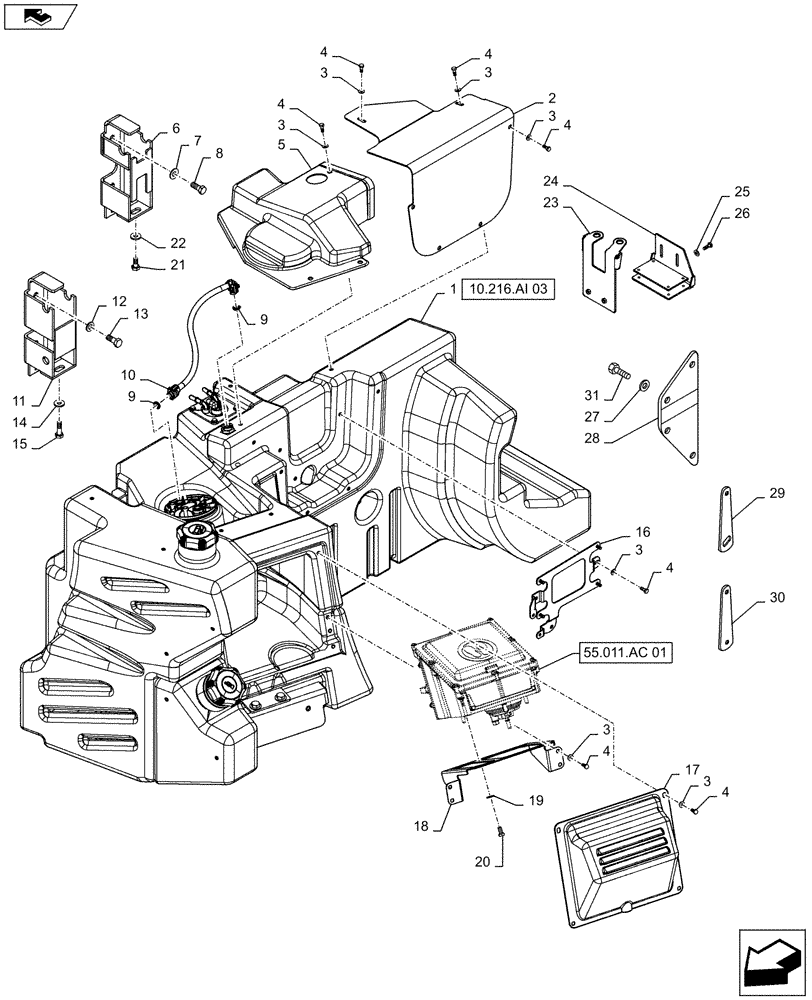

Запчасти Case IH MAXXUM 120 (10.216.AI[01]) - VAR - 330142, 743670 - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

84485845

FUEL TANK

1шт.

2

84408005

COVER

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

20шт.

5

84513193

LID

1шт.

6

84513738

SUPPORT

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

8

86637971

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

84206573

O-RING,2.5mm Thk x 12mm ID, -70

1шт.

10

84476616

HOSE ASSY.

Incl 9

1шт.

11

87490455

HOLDER

1шт.

12

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

13

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

14

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

15

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

2шт.

16

84406692

SUPPORT

1шт.

17

84515363

LID

1шт.

18

84513378

SUPPORT

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

20

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

21

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

22

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

23

84565189

SUPPORT

1шт.

24

84567385

SUPPORT

1шт.

25

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

26

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

27

84558779

SPACER

4шт.

28

84568894

RUBBER PAD

1шт.

29

84568999

ANCHOR

1шт.

30

84568955

ANCHOR

1шт.

31

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

4шт.
