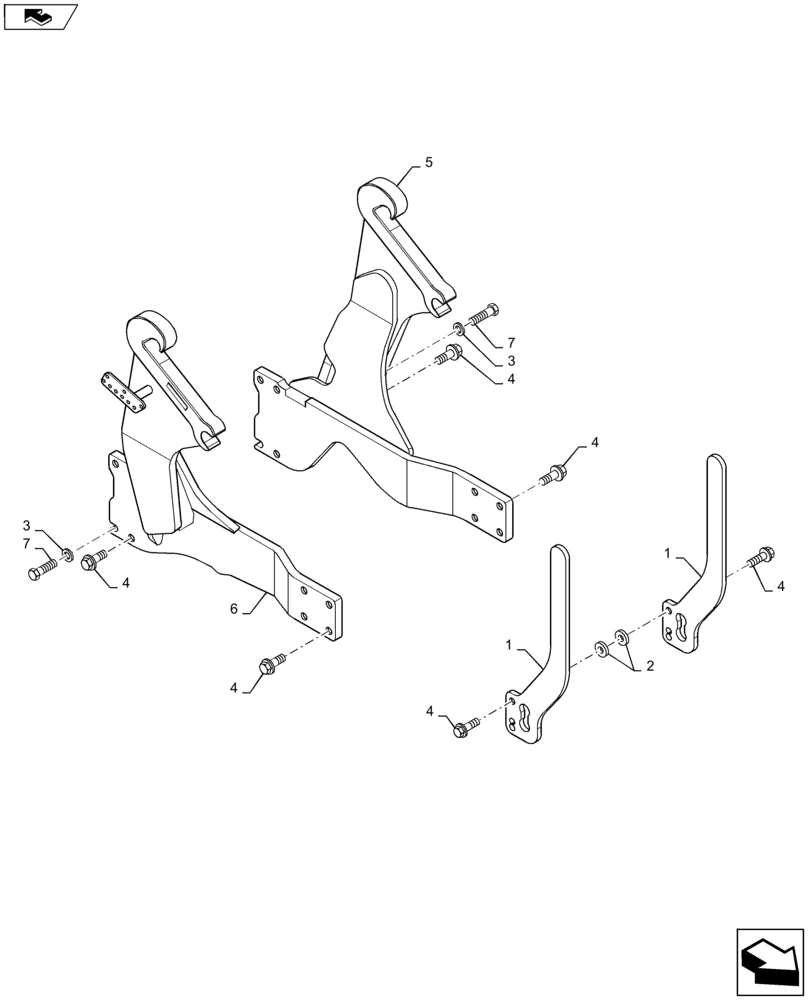

Запчасти Case IH MAXXUM 120 (82.100.AK[03]) - VAR - 334821, 743702 - EUROPEAN LOADER READY FOR FRONT HPL - SUPPORTS (82) - FRONT LOADER & BUCKET

1

87652548

BRACKET

2шт.

2

47057709

SPACER,22mm ID x 42mm OD x 10mm L

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

4

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

18шт.

5

84473365

FRAME

LH

1шт.

6

84473364

FRAME

RH

1шт.

7

11125271

BOLT,Hex, M20 x 75, 12.9

2шт.
