Запчасти Case IH MAXXUM 120 (25.102.AC[12]) - VAR - 330425 + STD - CL.3 FRONT AXLE BEVEL GEAR AND ADJUSTING SHIMS (25) - FRONT AXLE SYSTEM

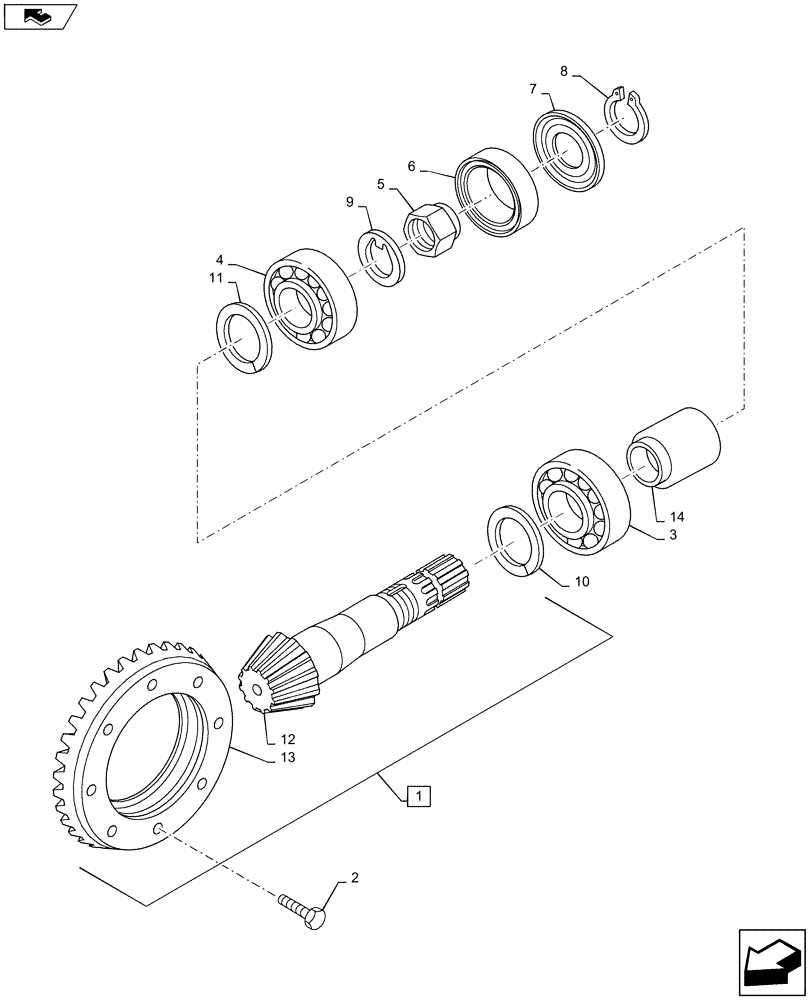

Схема запчастей Case IH MAXXUM 120 - (25.102.AC[12]) - VAR - 330425 + STD - CL.3 FRONT AXLE BEVEL GEAR AND ADJUSTING SHIMS (25) - FRONT AXLE SYSTEM
9
13
12
11
3
8
4
7
1
6
10
5
home
2
14

Артикул

Название

Примечание

Количество

1

84527568

GEAR SET,Ring and Pinion, Ratio 10/34

Ratio 10/34, Incl 12 and 13

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

84289068

CROWN NUT,M35 x 1.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

9

84285936

SPECIAL WASHER

1шт.

10

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

10

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

10

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

10

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

10

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

10

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

10

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

10

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

10

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

10

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

10

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

10

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

10

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

11

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

11

4997457

SHIM,35.1mm ID x 43mm OD x 2.6mm Thk

1шт.

11

4997458

SHIM,35.1mm ID x 43mm OD x 2.7mm Thk

1шт.

11

4997459

SHIM,35.1mm ID x 43mm OD x 2.8mm Thk

1шт.

11

4997460

SHIM,35.1mm ID x 43mm OD x 2.9mm Thk

1шт.

11

4997461

SHIM,35.00mm ID x 43.00mm OD x 3.00mm T

1шт.

11

4997462

SHIM,35.00mm ID x 43.00mm OD x 3.10mm T

1шт.

11

4997463

SHIM,35.00mm ID x 43.00mm OD x 3.20mm T

1шт.

11

5101234

SHIM,35.00mm ID x 43.00mm OD x 3.30mm Thk

1шт.

11

5101235

SHIM,35.00mm ID x 43.00mm OD x 3.40mm T

1шт.

11

5101236

SHIM,35.00mm ID x 43.00mm OD x 3.50mm Thk

1шт.

11

5101237

SHIM,35.00mm ID x 43.00mm OD x 3.60mm T

1шт.

11

5101238

SHIM,35.00mm ID x 43.00mm OD x 3.70mm T

1шт.

11

5129151

SHIM,35.1mm ID x 43mm OD x 2.55mm Thk

1шт.

11

5129152

SHIM,35.1mm ID x 43mm OD x 2.65mm Thk

1шт.

11

5129153

SHIM,35.1mm ID x 43mm OD x 2.75mm Thk

1шт.

11

5129154

SHIM,35.1mm ID x 43mm OD x 2.85mm Thk

1шт.

11

5129155

SHIM,35.1mm ID x 43mm OD x 2.95mm Thk

1шт.

11

5129156

SHIM,35.00mm ID x 43.00mm OD x 3.05mm T

1шт.

11

5129157

SHIM,35.00mm ID x 43.00mm OD x 3.15mm T

1шт.

11

5129158

SHIM,35.00mm ID x 43.00mm OD x 3.25mm T

1шт.

11

5129159

SHIM,35.00mm ID x 43.00mm OD x 3.35mm T

1шт.

11

5129160

SHIM,35.00mm ID x 43.00mm OD x 3.45mm Thk

1шт.

11

5129161

SHIM,35.00mm ID x 43.00mm OD x 3.55mm T

1шт.

11

5129162

SHIM,35.00mm ID x 43.00mm OD x 3.65mm T

1шт.

11

5169314

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.80mm Thk

1шт.

11

5169315

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.85mm Thk

1шт.

11

5169316

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.90mm Thk

1шт.

11

5169317

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.95mm Thk

1шт.

11

5169318

SHIM,35.1mm ID x 43mm OD x 4mm Thk

1шт.

11

5169319

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.05mm Thk

1шт.

11

5169320

SHIM,35.1mm ID x 43mm OD x 4.1mm Thk

1шт.

11

5169321

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.15mm Thk

1шт.

11

5169322

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.20mm Thk

1шт.

11

5169323

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.25mm Thk

1шт.

11

5169324

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.30mm Thk

1шт.

11

5169325

SHIM,35.1mm ID x 43mm OD x 4.35mm Thk

1шт.

11

5169326

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.40mm Thk

1шт.

11

5169327

SHIM,35.1mm ID x 43mm OD x 4.45mm Thk

1шт.

11

5169328

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.50mm Thk

1шт.

11

5169329

SHIM,35.1mm ID x 43mm OD x 4.55mm Thk

1шт.

11

5169330

SHIM,35.1mm ID x 43mm OD x 4.6mm Thk

1шт.

11

5169331

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.65mm Thk

1шт.

11

5169332

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.70mm Thk

1шт.

11

5169333

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.75mm Thk

1шт.

11

5169334

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.80mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

14

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

Выбрано товаров: 71
