Запчасти Case IH MAXXUM 120 (90.124.AK[01]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - SUSPENSION BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

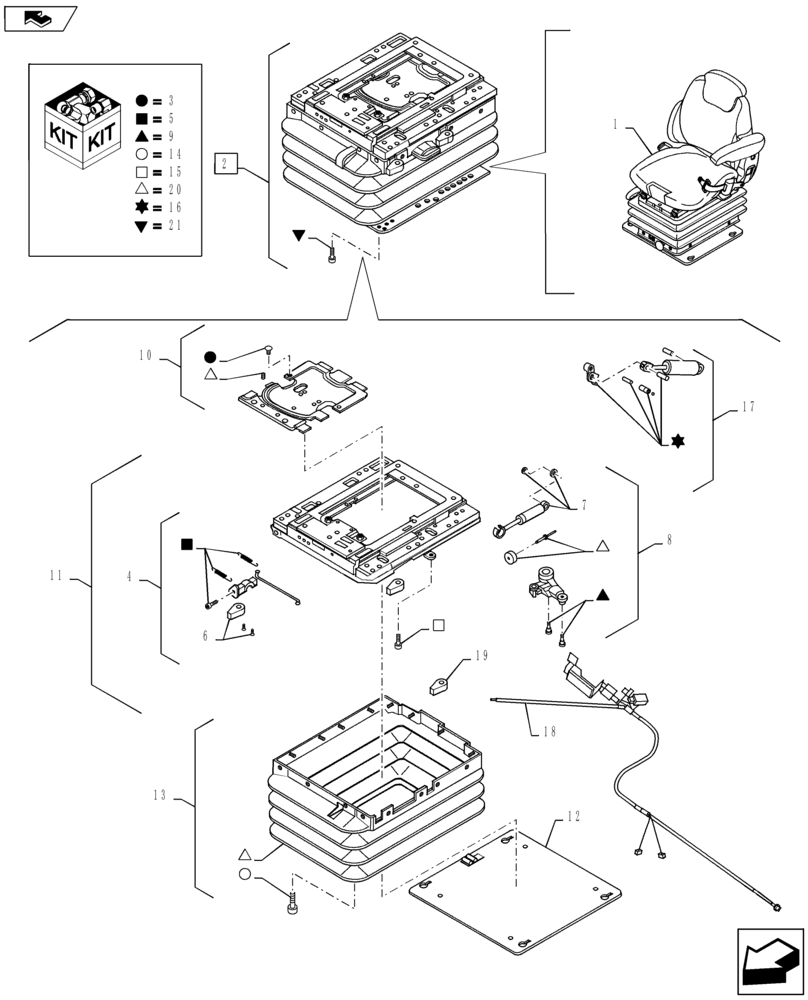

Схема запчастей Case IH MAXXUM 120 - (90.124.AK[01]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - SUSPENSION BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
20
4
21
16
14
home
14
12
18
7
9
3
21
15
8
5
6
16
20
20
3
15
10
17
13
16
5
2
3
15
11
14
21
1
5
9
19
20
9

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY, Incl 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl in 1, Incl 21

1шт.

3

84191006

REPAIR KIT

1шт.

4

84190989

ADJUSTER

Incl 5, 6

1шт.

5

84191015

REPAIR KIT

1шт.

6

1472163

HANDLE

1шт.

7

84190985

SHOCK ABSORBER

1шт.

8

84190983

SHOCK ABSORBER

Incl 7, 9, 20

1шт.

9

84191002

REPAIR KIT

1шт.

10

84190947

COVER

Incl 3, 20

1шт.

11

84190966

PLATE

Incl 4, 15

1шт.

12

84191021

PLATE

1шт.

13

84190978

BELLOWS

Incl 14, 20

1шт.

14

84191003

REPAIR KIT

1шт.

15

84191010

REPAIR KIT

1шт.

16

84190998

SERVICE KIT

1шт.

17

84191071

KIT

Incl 16

1шт.

18

84190970

WIRE HARNESS

1шт.

19

82035123

HANDLE

1шт.

20

84190975

REPAIR KIT

1шт.

21

84191020

REPAIR KIT

1шт.

Выбрано товаров: 21
