Запчасти Case IH MAXXUM 120 (88.100.55[11]) - DIA KIT - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (88) - ACCESSORIES

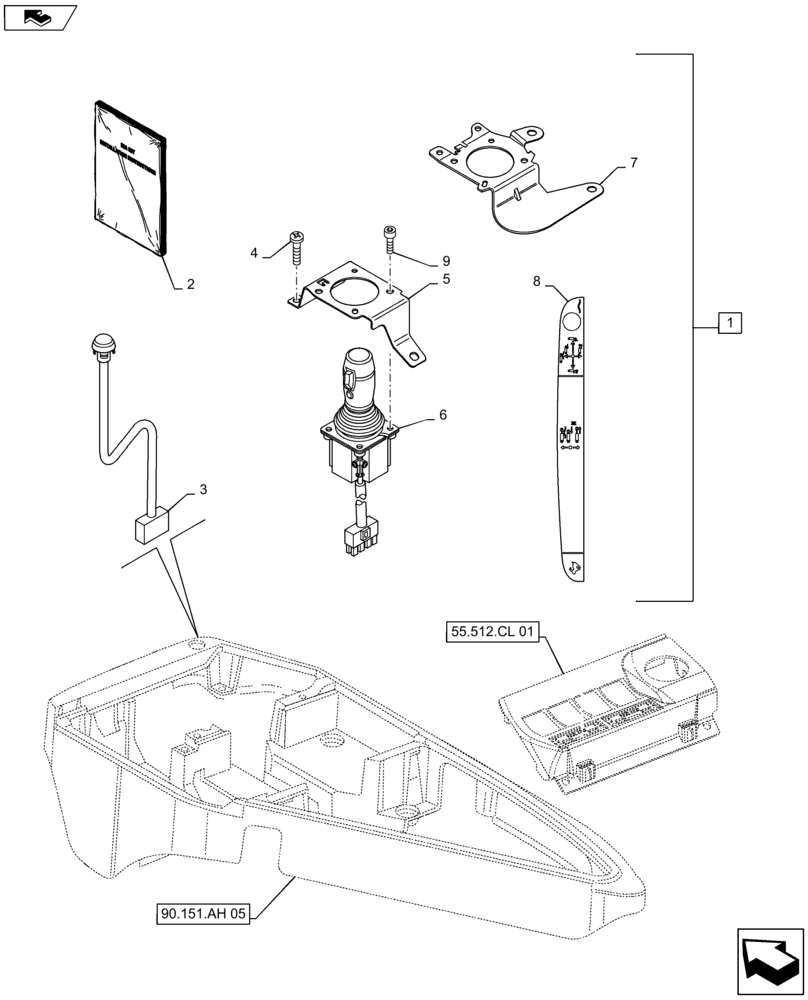

Схема запчастей Case IH MAXXUM 120 - (88.100.55[11]) - DIA KIT - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (88) - ACCESSORIES
3
7
home
6
55.512.cl 01
1
8
9
4
2
5
90.151.ah 05

Артикул

Название

Примечание

Количество

1

719300024

DIA KIT, TRACTOR

Electronic Joystick with Proportional Simultaneous Control of 3rd Function, Incl 2 - 9

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84213411

INSTRUCTION

1шт.

3

87485775

SWITCH ASSY

Auxiliary Selection

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.

6

84208738

JOYSTICK

Auxiliary Selection

1шт.

84208738R

REMAN-JOYSTICK

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140

1шт.

84208738C

CORE-JOYSTICK

Return Number

1шт.

7

84150720

HOLDER

1шт.

8

84126448

DECAL

1шт.

9

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

Выбрано товаров: 12
