Запчасти Case IH MAXXUM 120 (88.100.35[08]) - DIA KIT - 2 HYDRAULIC FRONT COUPLERS RH FOR INTEGRATED FRONT HPL (88) - ACCESSORIES

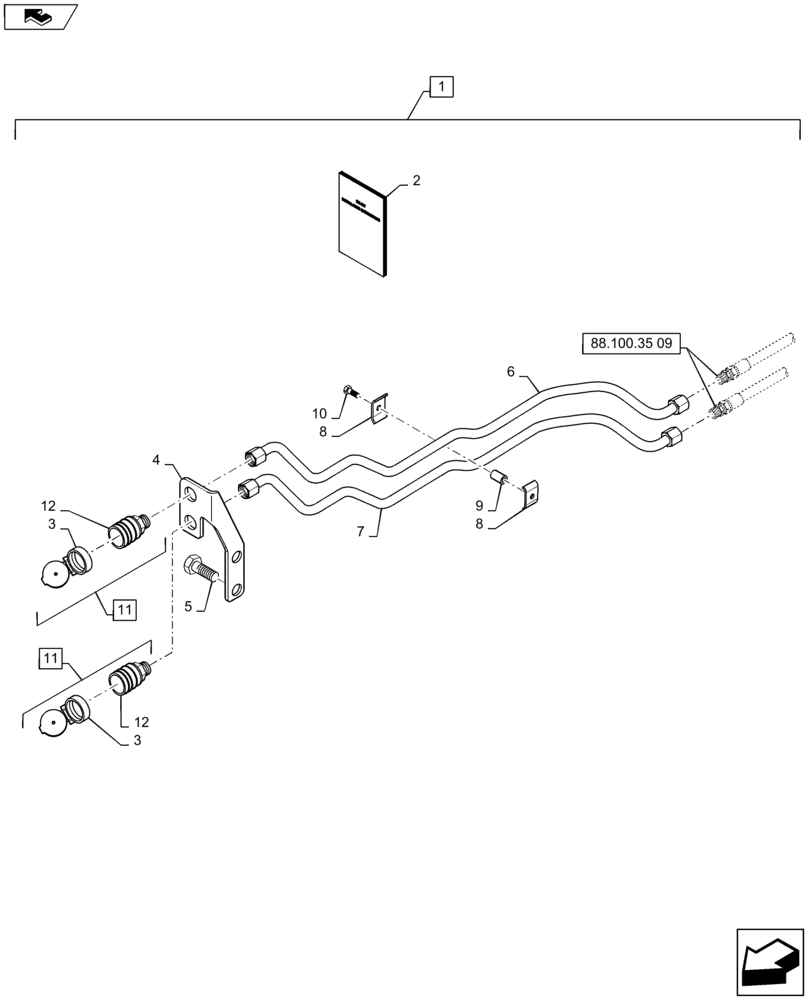

Схема запчастей Case IH MAXXUM 120 - (88.100.35[08]) - DIA KIT - 2 HYDRAULIC FRONT COUPLERS RH FOR INTEGRATED FRONT HPL (88) - ACCESSORIES
2
12
3
10
12
8
9
home
7
11
88.100.35 09
1
4
8
3
6
11
5

Артикул

Название

Примечание

Количество

1

718344034

DIA KIT, TRACTOR

2 RH Side Front Mounted Hydraulic Couplers for Integrated Front HPL, 4 Cyl, Incl 2 - 12

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figure 88.100.35 09

1шт.

2

87664280

INSTRUCTION

1шт.

3

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

2шт.

4

87664279

BRACKET

1шт.

5

11124421

BOLT,Hex, M20 x 40, 8.8

2шт.

6

87664277

HYD TUBE,16 mm OD

Lift, RH

1шт.

7

87664278

HYD TUBE,16 mm OD

Sink, RH

1шт.

8

47057074

CLAMP,48.6mm x 30mm

2шт.

9

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

10

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

11

47056506

PUSH-PULL COUPLING

Incl 3, 12

2шт.

12

NSS

NOT SOLD SEPARAT

Coupling, Incl in 11

1шт.

Выбрано товаров: 14
