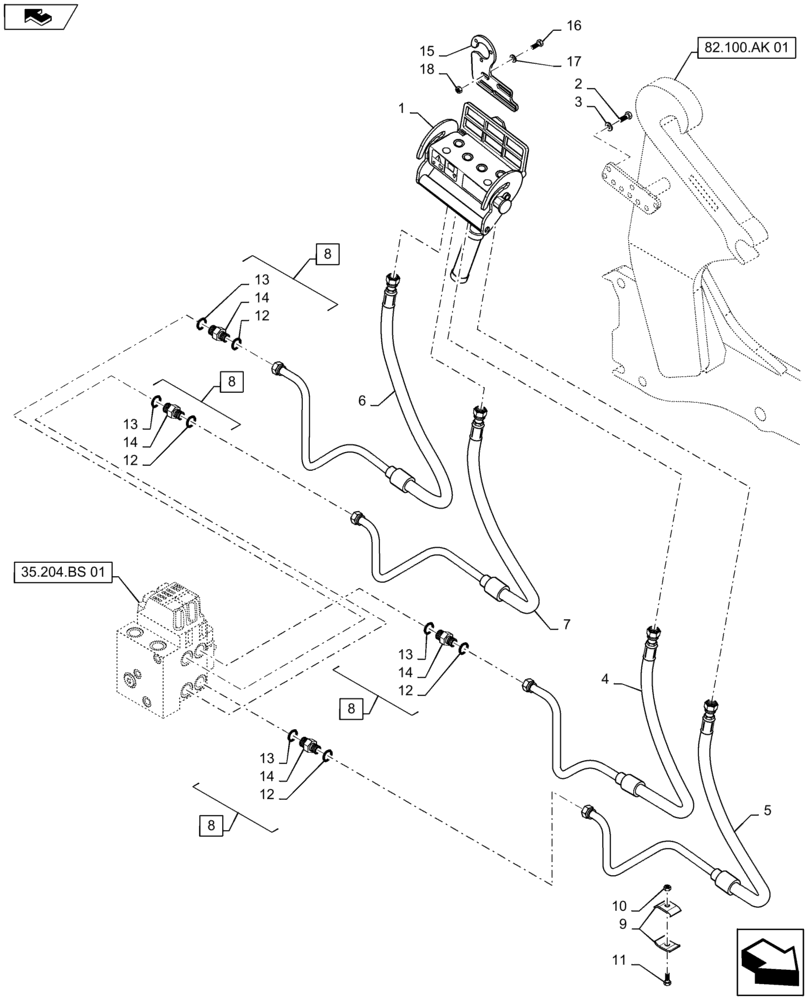

Запчасти Case IH MAXXUM 120 (35.701.AD[01]) - VAR - 332821, 334821, 743702 - EUROPEAN LOADER READY -FAST-FITTING CONNECTION AND PIPES (35) - HYDRAULIC SYSTEMS

1

87733579

COUPLING

1шт.

2

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

2шт.

4

84485794

FLEXIBLE HOSE

Loader Crowd, Serial Range: -C7176

1шт.

4

84570241

FLEXIBLE HOSE

Loader Crowd, Start Serial: D7176

1шт.

5

84485796

HYDRAULIC HOSE

Loader Tip, Serial Range: -C7176

1шт.

5

84570281

FLEXIBLE HOSE

Loader Tip, Start Serial: D7176

1шт.

6

84485798

FLEXIBLE HOSE

Loader Raise, Serial Range: -C7176

1шт.

6

84570282

FLEXIBLE HOSE

Loader Raise, Start Serial: D7176

1шт.

7

84485801

FLEXIBLE HOSE

Loader Lower, Serial Range: -C7176

1шт.

7

84570327

FLEXIBLE HOSE

Loader Lower, Start Serial: D7176

1шт.

8

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 12 - 14

4шт.

9

47057074

CLAMP,48.6mm x 30mm

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

1шт.

11

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

4шт.

15

87736290

BRACKET

1шт.

16

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

17

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

18

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.
