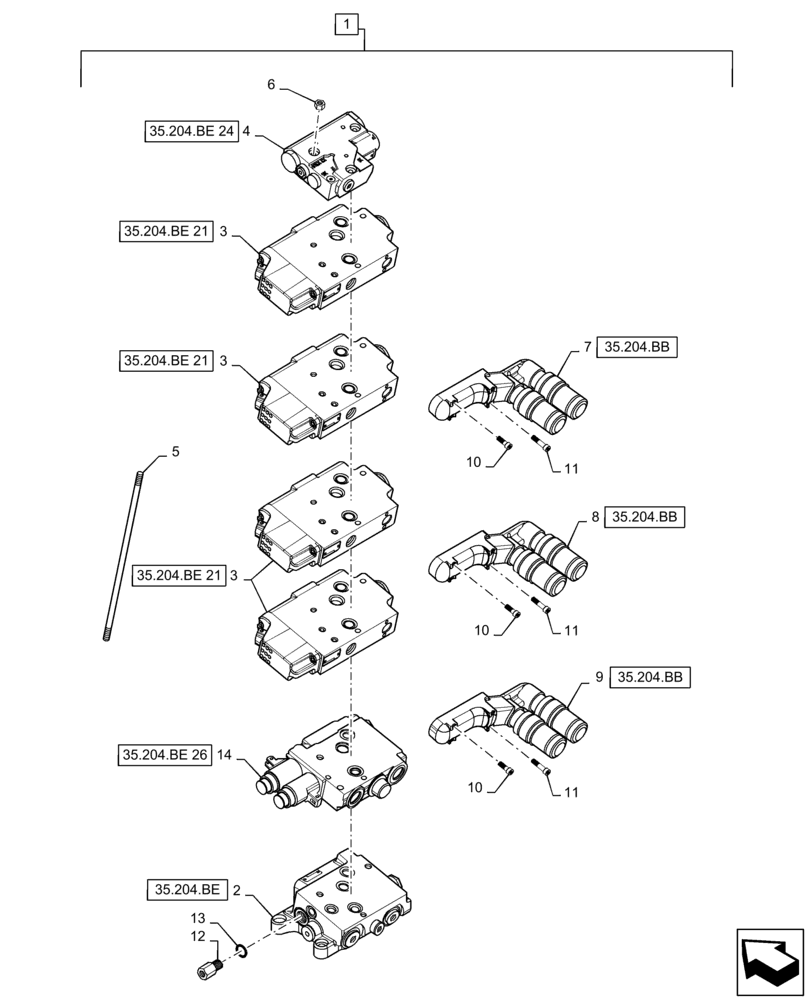

Запчасти Case IH MAXXUM 120 (35.204.BQ[06]) - VAR - 330862, 338851, 743733 -4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

84266085

CONTROL VALVE

Incl 2 - 14

1шт.

2

87730706

CONTROL VALVE

1шт.

3

84230181

HYD VALVE SECTION

4шт.

4

84230200

HYD VALVE SECTION

1шт.

5

47129473

THREADED TIE-ROD

3шт.

6

5195169

NUT,M8

3шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

12

5191704

CHECK VALVE

1шт.

13

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

14

84175671

VALVE SECTION

EDC

1шт.
