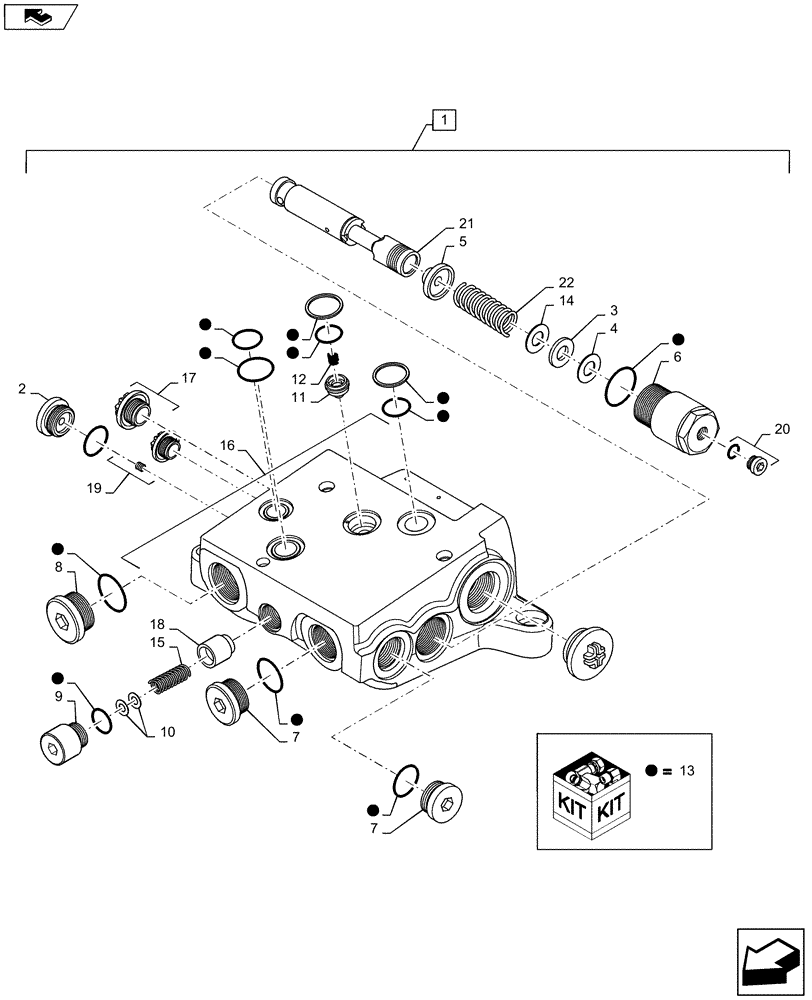

Запчасти Case IH MAXXUM 120 (35.204.BE[19]) - REMOTE VALVE - CONNECTION PLATE - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87730706

CONTROL VALVE

Incl 2 - 22

1шт.

1

87730706R

REMAN-HYD VALVE

1шт.

1

87730706C

CORE-VALVE HYD

Return Number

1шт.

2

47129472

PLUG

1шт.

3

84127098

WASHER

1шт.

4

84127099

SHIM,12.10mm ID x 20.00mm OD x 0.10

1шт.

5

47126924

SPRING SEAT

1шт.

6

47129464

PLUG

1шт.

7

47129438

PLUG

2шт.

8

47129449

PLUG,M27 x 2 x 19mm L

1шт.

9

47129465

PLUG

1шт.

10

47126930

SHIM,6.50mm ID x 11.50mm OD x 0.10mm

1шт.

10

47126929

SHIM,6.50mm ID x 11.50mm OD x 0.50mm

1шт.

11

5191716

VALVE

1шт.

12

47129466

SPRING

1шт.

13

47129468

SEAL KIT

1шт.

14

84127069

SHIM

1шт.

15

47126925

SPRING

1шт.

16

NSS

NOT SOLD SEPARAT

Housing and Plug, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Plug and O-Ring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Plug and Set Screw, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Plug and O-Ring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.
