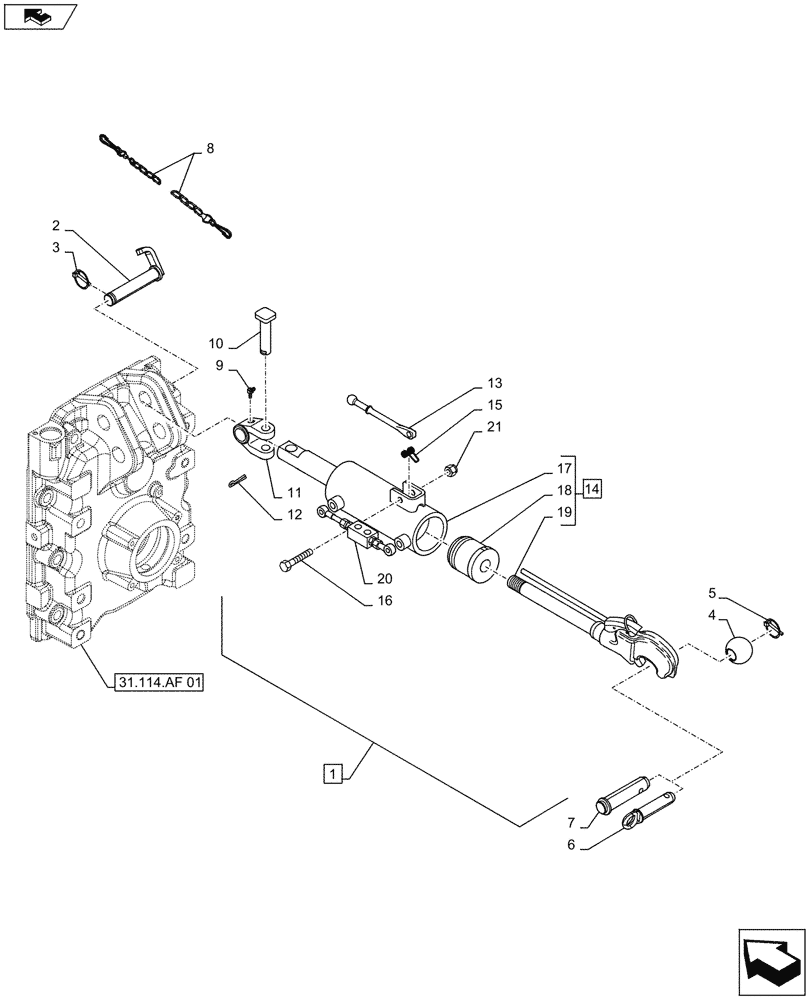

Запчасти Case IH MAXXUM 120 (35.124.AJ[01A]) - VAR - 330921, 331921, 743696, 332923 - CAT 2/3 QUICK ATTACH LINKS FOR HYDRAULIC LINKAGE ADJUSTMENT - TOP LINK - D7395 (35) - HYDRAULIC SYSTEMS

1

84517023

UPPER LINK

ASSY, Incl 9 - 16, 20, 21

1шт.

Part Shown is Also Available in Dia Kit 719790024

1шт.

2

5191449

PIN,27.9mm OD x 152mm L

1шт.

3

82014909

LOCK PIN,5.5mm OD

1шт.

4

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

Cat. 2

1шт.

4

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

Cat. 3

1шт.

5

5166585

LOCK PIN,11mm OD

1шт.

6

822483

PIN,25.5mm OD x 137mm L

Cat. 2

1шт.

7

44015196

PIN,31.75mm OD x 146mm L

Cat. 3

1шт.

8

5174402

LINK CHAIN,1500mm L

1шт.

9

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

10

5161789

PIN,34mm OD x 91mm L

1шт.

11

5161787

YOKE,28mm D x 28mm D

1шт.

12

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

13

5172394

LEVER

1шт.

14

84584519

HYD CYL SLEEVE

ASSY, Incl 17 - 19

1шт.

15

47134489

SPRING

1шт.

16

350460

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

1шт.

17

NSS

NOT SOLD SEPARAT

Cylinder, Incl in

1шт.

18

NSS

NOT SOLD SEPARAT

Piston, Incl in

1шт.

19

NSS

NOT SOLD SEPARAT

Rod, Incl in

1шт.

20

84584614

VALVE,Double Acting, 40mm Rod, 175mm Stroke

1шт.

21

412126

NUT,M12 x 1.75

1шт.
