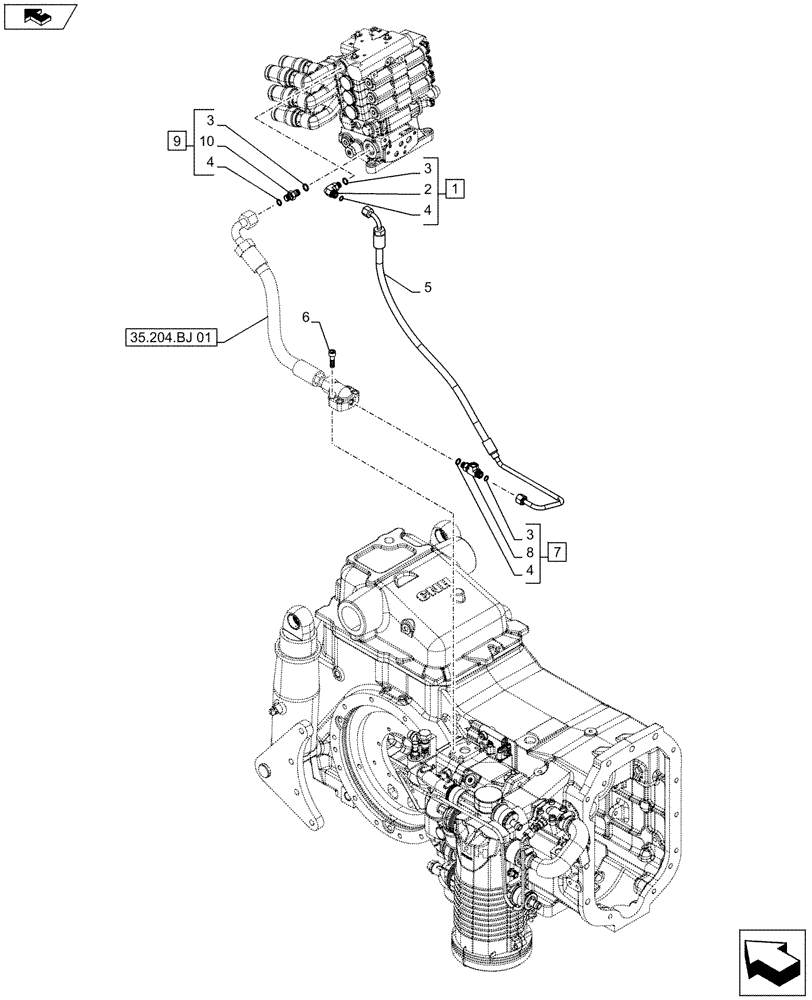

Запчасти Case IH MAXXUM 120 (35.106.AS[03]) - HYDRAULIC PUMP 113 L/MIN CCLS - REAR REMOTES PILOT LINE (35) - HYDRAULIC SYSTEMS

1

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

ASSY, Contains Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

5

84188093

HOSE

1шт.

6

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

7

87738179

TEE,11/16" - 16 ORFS x M14 x 1.5 ORB x M14 x 1.5 JIC

ASSY, Contains Ref. 3, 4, 8

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

47134287

HYD CONNECTOR

ASSY, Contains Ref. 3, 4, 10

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.
