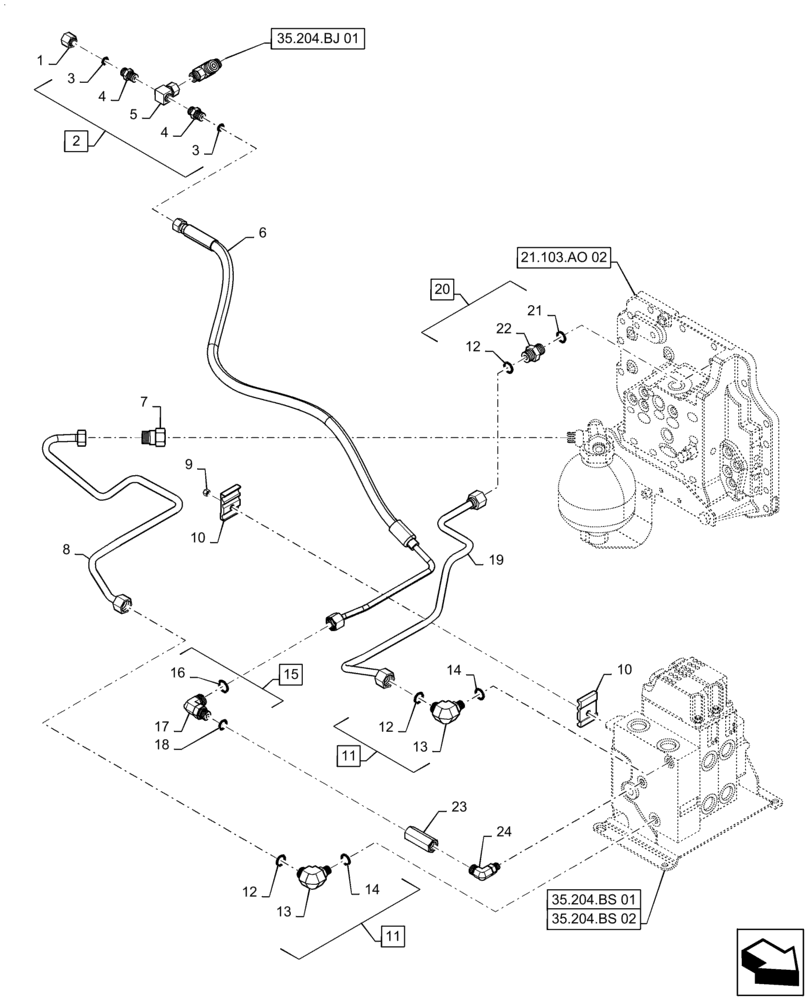

Запчасти Case IH MAXXUM 120 (35.106.AS[02]) - VAR - 330560, 333560, 743689, 330561, 333561, 743690 - ELECTRONIC MID MOUNT VALVES - PILOT PIPES (35) - HYDRAULIC SYSTEMS

1

5189973

PLUG

1шт.

2

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Incl 3 - 5

1шт.

3

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting Incl in 2

1шт.

6

47398410

FLEXIBLE HOSE

Load Sensing

1шт.

7

87582905

ORIFICE

1шт.

8

84467244

HYD TUBE

Supply Servo

1шт.

9

84268307

NUT,M6 x 0.75, 8 ZND

1шт.

10

84479191

CLAMP BRACKET

2шт.

11

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

Incl 12 - 14

2шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

2шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

15

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 16 - 18

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl 15

1шт.

18

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

84467247

HYD TUBE

Discharge Servo

1шт.

20

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 12, 21, 22

1шт.

21

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

23

47398421

HYD CONNECTOR,9/16"-18 x M12 x 1.5

1шт.

24

47541009

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

1шт.
