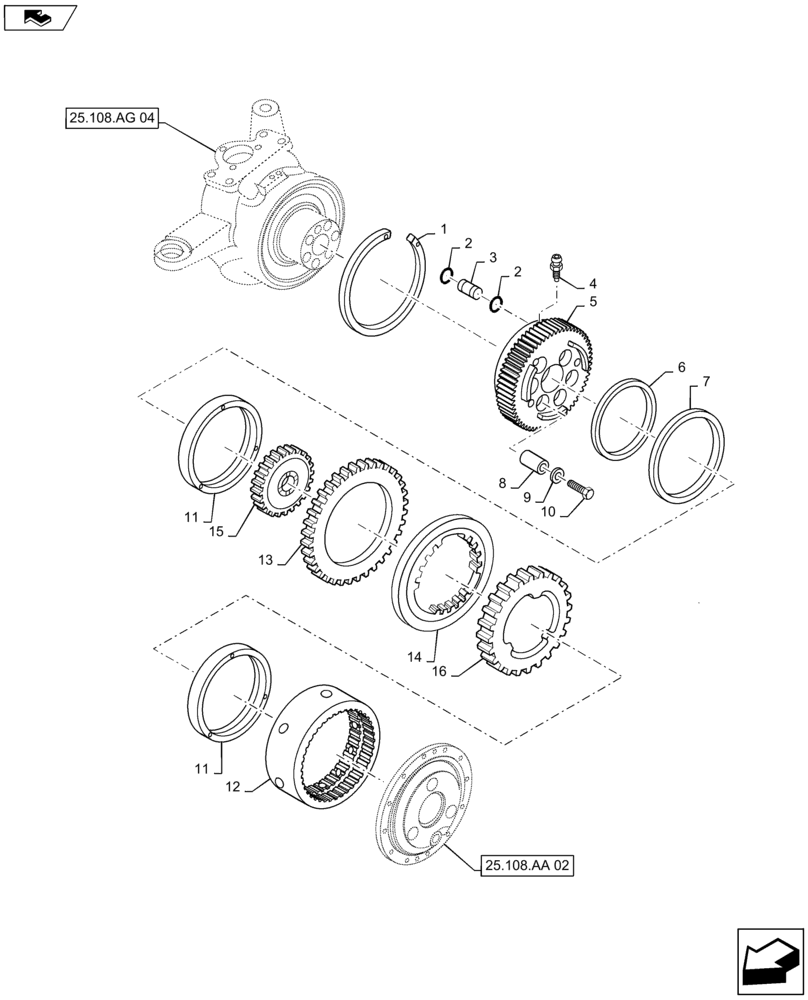

Запчасти Case IH MAXXUM 120 (33.204.AD[01]) - VAR - 330427 - CL.3 SUSPENDED FRONT AXLE - BRAKES (33) - BRAKES & CONTROLS

1

5175606

RING

2шт.

2

14456980

O-RING,10.77mm ID x 2.62mm

4шт.

3

5173504

PAWL,16mm OD x 25mm L

2шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5190527

HOUSING

2шт.

6

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

2шт.

7

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

2шт.

8

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

12шт.

9

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

12шт.

10

16331930

BOLT,Hex, M14 x 1.5 x 55mm

12шт.

11

5190528

PISTON

4шт.

12

5191771

RING GEAR,248.00mm OD

2шт.

13

5171917

BRAKE DISC,150mm ID x 227mm OD x 4.95mm Thk

2шт.

14

5175567

BRAKE DISC,213.00mm OD

2шт.

15

5178475

HUB

2шт.

16

5181748

WEAR PLATE,68T

2шт.
