Запчасти Case IH MAXXUM 120 (31.104.AR [04]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION LESS CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

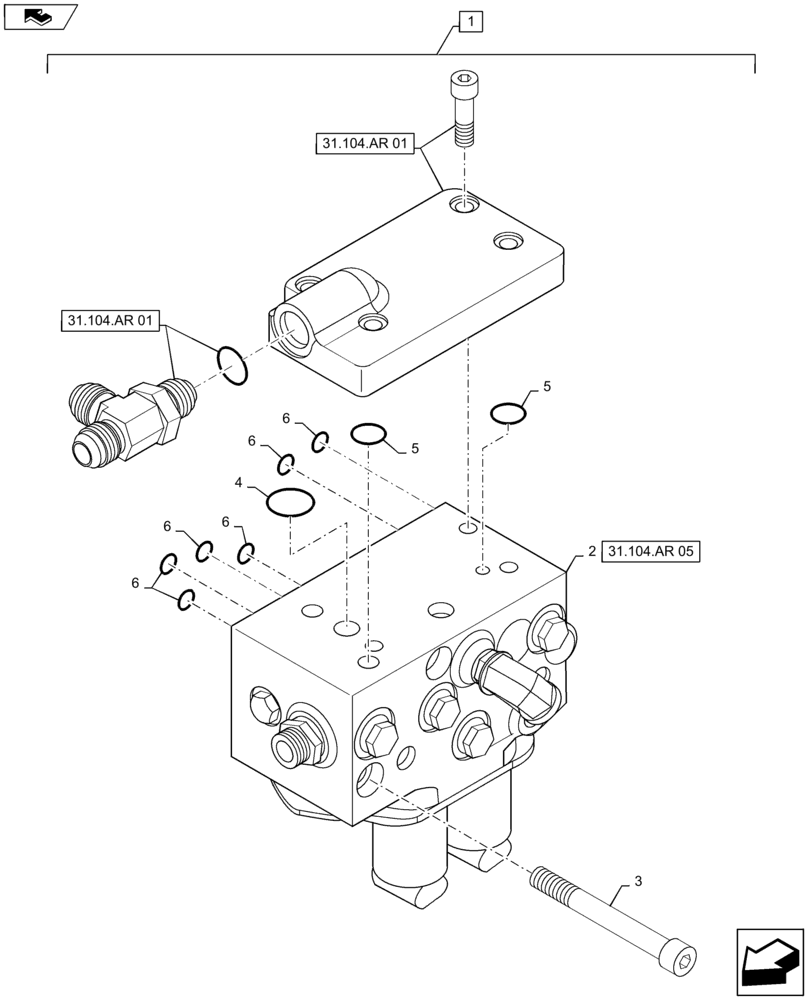

Схема запчастей Case IH MAXXUM 120 - (31.104.AR [04]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION LESS CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF
5
31.104.ar 01
2
5
6
1
31.104.ar 05
6
home
6
6
3
6
4
31.104.ar 01

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Order Components, See Below

1шт.

2

5195591

CONTROL VALVE

1шт.

3

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

4

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

5

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

6

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

Выбрано товаров: 6
