Запчасти Case IH MAXXUM 120 (31.104.AR[12]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION WITH CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

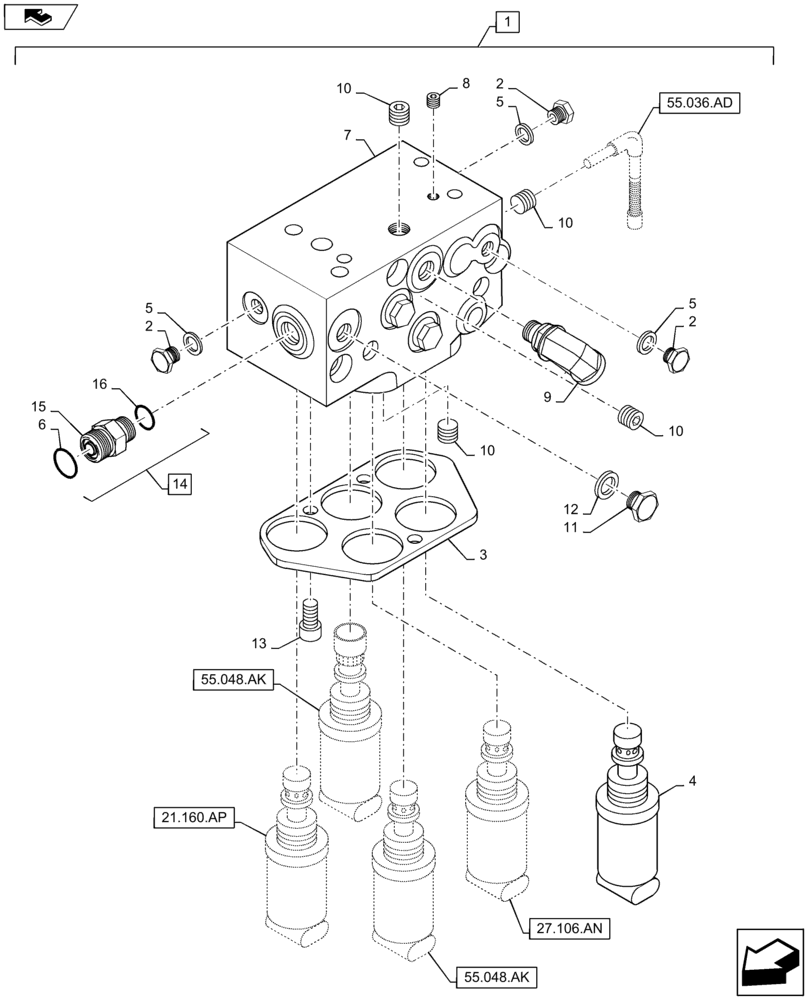

Схема запчастей Case IH MAXXUM 120 - (31.104.AR[12]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION WITH CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF
15
2
14
4
16
7
12
55.048.ak
55.036.ad
3
21.160.ap
2
11
27.106.an
10
6
5
5
10
home
10
55.048.ak
2
13
10
9
5
1
8

Артикул

Название

Примечание

Количество

1

5195592

CONTROL VALVE

Incl 2 - 16 and Solenoid Valves, p.n. 84276869 and 87739558, shown in figure 55.048.AK

1шт.

2

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

3

5195317

PLATE

1шт.

4

84276869

SOLENOID

113.5mm, Red Connector, 4WD Disengagement

1шт.

5

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

8

5171508

RESTRICTOR

1шт.

9

87537887

90 ELBOW

1шт.

10

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

9шт.

11

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

13

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

14

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

Incl 6, 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

Выбрано товаров: 16
