Запчасти Case IH MAXXUM 120 (31.104.AR[10]) - VAR - 338405 + STD - ELECTROHYDRAULIC CONTROL VALVE FOR 40KM/H TRANSMISSION LESS CREEPER, FOR CCLS PUMP (31) - IMPLEMENT POWER TAKE OFF

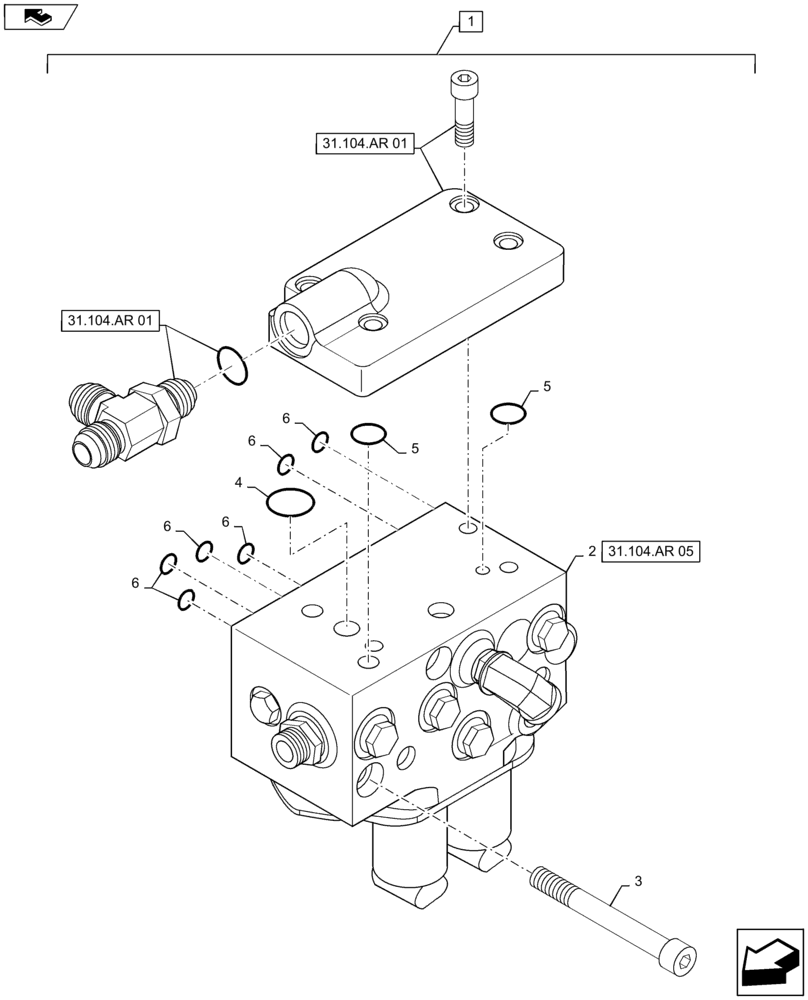

Схема запчастей Case IH MAXXUM 120 - (31.104.AR[10]) - VAR - 338405 + STD - ELECTROHYDRAULIC CONTROL VALVE FOR 40KM/H TRANSMISSION LESS CREEPER, FOR CCLS PUMP (31) - IMPLEMENT POWER TAKE OFF
2
31.104.ar 01
4
31.104.ar 05
6
5
6
3
home
6
1
6
31.104.ar 01
5
6

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Incl 2 - 5, Order Below Components

1шт.

2

5195591

CONTROL VALVE

1шт.

3

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

6

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

Выбрано товаров: 6
