Запчасти Case IH MAXXUM 120 (31.104.AR[09]) - ELECTROHYDRAULIC CONTROL VALVE FOR 40E AND 50KM/H TRANSMISSION LESS CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

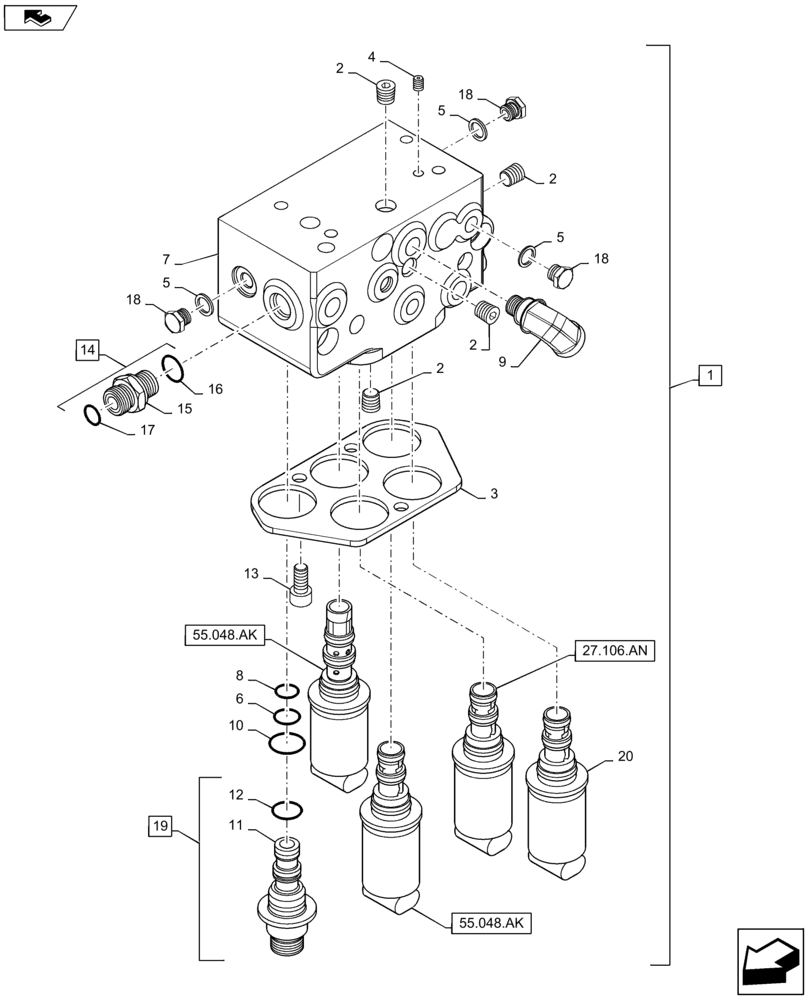

Схема запчастей Case IH MAXXUM 120 - (31.104.AR[09]) - ELECTROHYDRAULIC CONTROL VALVE FOR 40E AND 50KM/H TRANSMISSION LESS CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF
13
2
8
9
55.048.ak
5
10
17
2
14
2
11
1
home
6
27.106.an
5
18
18
5
16
7
19
4
55.048.ak
15
2
12
18
20
3

Артикул

Название

Примечание

Количество

1

5197153

CONTROL VALVE

Incl 2 - 20 and Solenoid Valve 87739558, shown in figure 55.048.AK

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

9шт.

3

5195317

PLATE

1шт.

4

5171508

RESTRICTOR

1шт.

5

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

6

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

8

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

9

87537887

90 ELBOW

1шт.

10

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

13

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

14

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

17

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

18

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

19

5197021

HYD CONNECTOR

Incl 11, 12

1шт.

20

84276869

SOLENOID

113.5mm, Red Connector, 4WD Disengagement

1шт.

Выбрано товаров: 20
