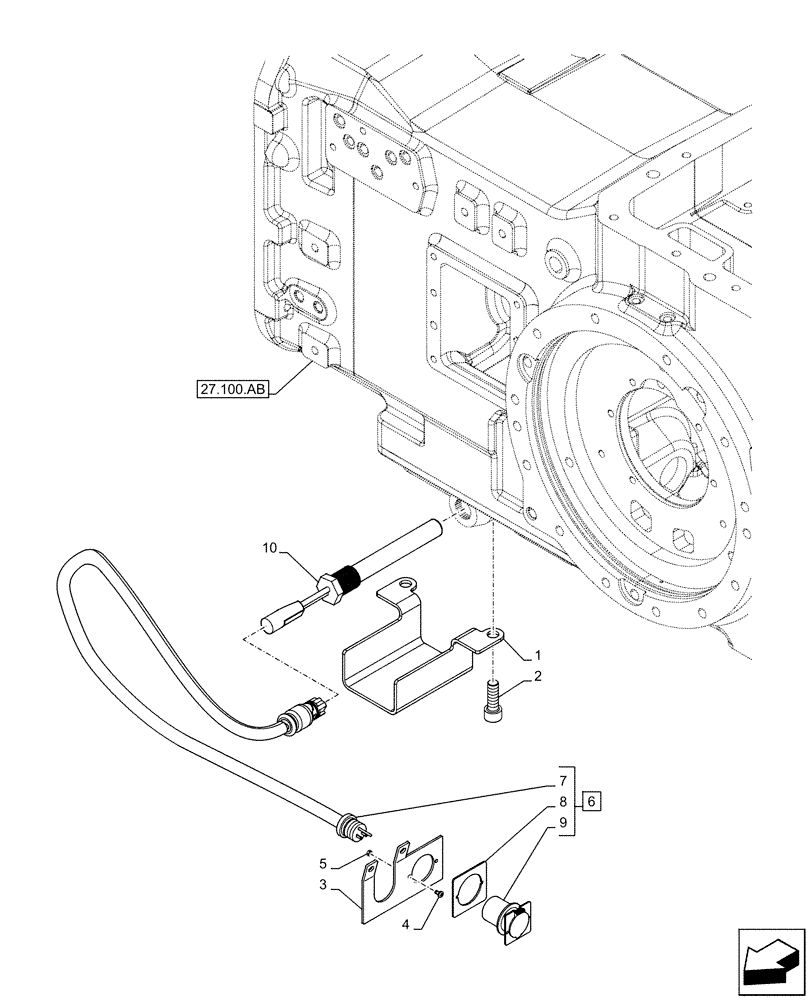

Запчасти Case IH MAXXUM 120 (21.118.AJ[03]) - TRANSMISSION OIL HEATER - 240V (VAR.330206) (21) - TRANSMISSION

1

87616064

GUARD

TRANS OIL HEATER

1шт.

2

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

3

87315478

BRACKET

TRANS OIL HEATER

1шт.

4

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

6

84397509

ELECTRIC CABLE

TRANS OIL HEATER, ASSY, Contains Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

Incl in 6

1шт.

9

NSS

NOT SOLD SEPARAT

Incl in 6

1шт.

10

82030789

HEATER,240V

1шт.
