Запчасти Case IH MAXXUM 115 (25.108.AN[03]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

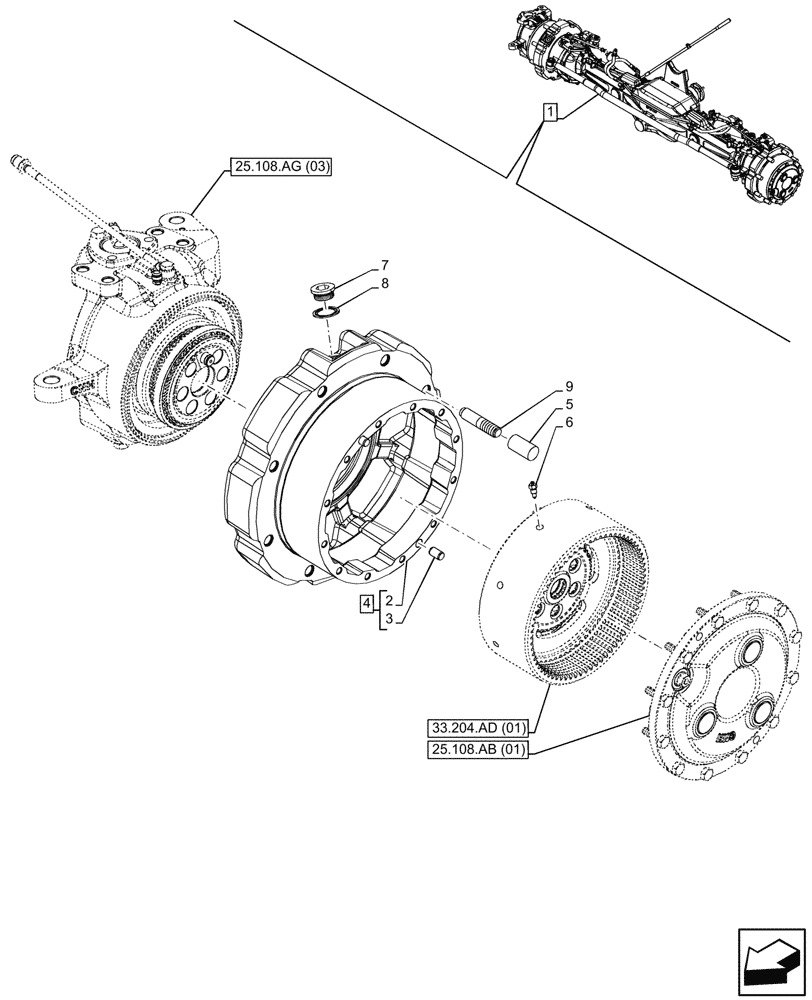

Схема запчастей Case IH MAXXUM 115 - (25.108.AN[03]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
33.204.ad (01)
8
4
3
2
7
6
9
5
1
25.108.ab (01)
25.108.ag (03)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.108.AA (03), 25.108.AG (03), 33.204.AD (01), 33.204.AD (02), 41.216.AN (03), 55.047.AA (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

1шт.

3

4985063

DOWEL,12mm OD x 20mm L

12mm x 20mm

2шт.

4

87529978

HUB

ASSY, Incl 2, 3

1шт.

5

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

6

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

7

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

8

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.

9

87618916

STUD

8шт.

Выбрано товаров: 10
