(25.102.AT[03]) - VAR - 758422, 758423, 758427, 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HYD. LINE

Запчасти Case IH MAXXUM 115 (25.102.AT[03]) - VAR - 758422, 758423, 758427, 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HYD. LINE (25) - FRONT AXLE SYSTEM

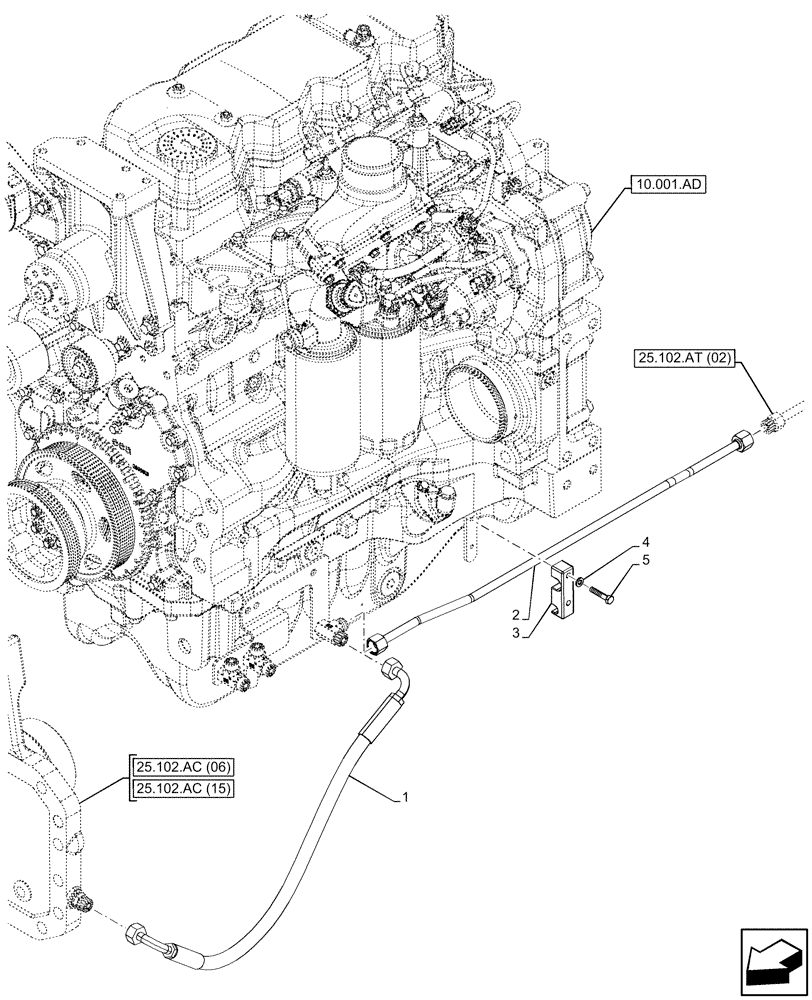

Схема запчастей Case IH MAXXUM 115 - (25.102.AT[03]) - VAR - 758422, 758423, 758427, 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HYD. LINE (25) - FRONT AXLE SYSTEM
25.102.at (02)
2
3
5
1
4
25.102.ac (06)
25.102.ac (15)
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

From Control Valve to Differential

1шт.

2

87543759

TUBE,8 mm ID x 10 mm OD x 650, 555 mm L

From Control Valve to Differential

1шт.

3

82029228

CLAMP,2 Hoses

1шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

5

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

Выбрано товаров: 5
