Запчасти Case IH MAXXUM 115 (1.95.5[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

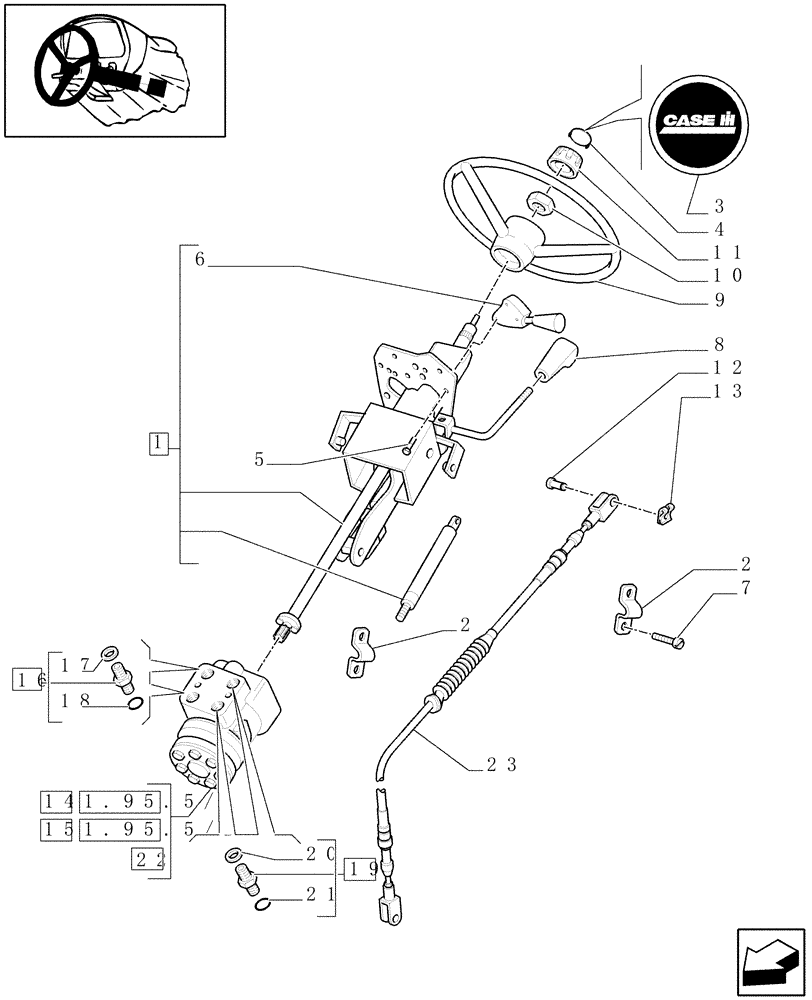

Схема запчастей Case IH MAXXUM 115 - (1.95.5[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (10) - OPERATORS PLATFORM/CAB
6
2
21
13
2
10
3
17
12
1
15
1.95.5/a
1.95.5/b
18
23
8
16
9
4
14
19
5
11
22
7
20

Артикул

Название

Примечание

Количество

1

87327130

STEERING COLUMN

1шт.

2

82026579

CLAMP,44.4mm L x 16mm W

2шт.

3

86401707

EMBLEM

1шт.

4

87302798

CAP,54mm OD, Black

1шт.

5

15921801

SELF-TAP SCREW,Hex Wshr Hd, M3.50 x 1.27 x 13mm

6x13

3шт.

6

87302770

SWITCH ASSY

Flasher/Headlights

1шт.

7

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

8

82006428

KNOB

1шт.

9

9821708

STEERING WHEEL

1шт.

10

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

11

87302160

KNOB

1шт.

12

82026076

PIN,8mm OD x 21.85mm L

1шт.

13

82850690

CLIP,M5

1шт.

14

47137781

HYDRAULIC STEERING

2WD, Serial Range: -C6769

1шт.

14

47137771

HYDRAULIC STEERING

2WD, Serial Range: -C6769

1шт.

W/Heavy Duty Front Axle

1шт.

15

82001471

HYDRAULIC STEERING

4WD, Serial Range: -C6477

1шт.

15

82001471R

REMAN-HYD VALVE

Reman for New PN 82001471

1шт.

15

82001471C

CORE-VALVE HYD

Return Number

1шт.

16

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

M22x1.5 - 1/14

2шт.

17

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

19.6x24.3x1.5

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

20

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

1шт.

21

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

1шт.

22

84198317

HYDRAULIC STEERING

, Start Serial: D6477

1шт.

With CL.3 4WD Front Axle

1шт.

23

82033285

CABLE,1200mm L

1шт.

22

84266840

HYDRAULIC STEERING

2WD, Start Serial: D6769

1шт.

22

84266839

HYDRAULIC STEERING

2WD, Start Serial: D6769

1шт.

W/Heavy Duty Front Axle

1шт.

Выбрано товаров: 31
