Запчасти Case IH MAXXUM 115 (1.91.4/05[02]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 16X16 OR 24X24 - FUSEBOX (VAR.330824-330830) (10) - OPERATORS PLATFORM/CAB

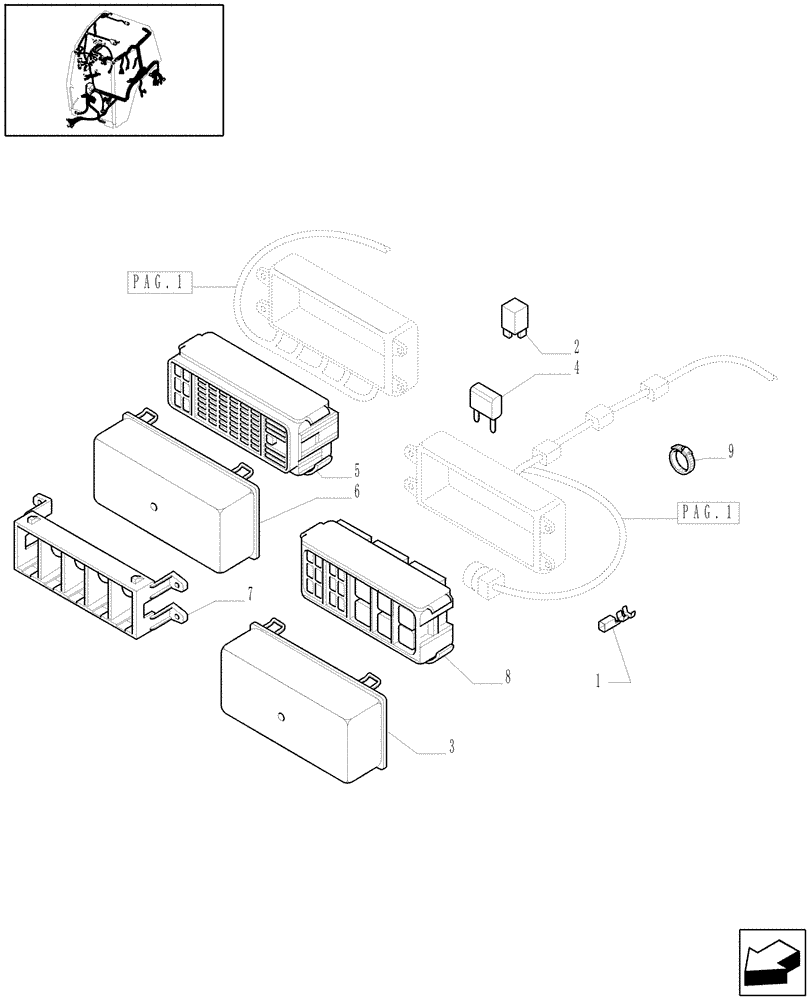

Схема запчастей Case IH MAXXUM 115 - (1.91.4/05[02]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 16X16 OR 24X24 - FUSEBOX (VAR.330824-330830) (10) - OPERATORS PLATFORM/CAB
pag.1
7
5
1
8
3
pag.1
4
6
9
2

Артикул

Название

Примечание

Количество

1

87301954

TERMINAL CONNECTOR,Tin, 0.35 - 0.75mm

1шт.

Included On Main Rear Harness

1шт.

1

87301955

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm²

1шт.

Included On Main Rear Harness

1шт.

1

87301956

TERMINAL CONNECTOR,2.5 - 4 mm2

1шт.

Included On Main Rear Harness

1шт.

1

87301957

TERMINAL CONNECTOR,1 - 2 mm2

1шт.

Included On Main Rear Harness

1шт.

1

87301958

TERMINAL CONNECTOR,2.5 - 4 mm2

1шт.

Included On Main Rear Harness

1шт.

2

87522597

FUSE,10A, Mini, Red

10A

1шт.

2

87524877

FUSE,15A, Mini, Blue

15A

1шт.

2

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

2

10402190

FUSE,30A, Mini

30A

1шт.

2

10401290

FUSE,25 amp Mini

25A

1шт.

2

82012872

RELAY,70A

1шт.

3

82033977

COVER

Relay Box

1шт.

Included On Main Rear Harness

1шт.

4

11056090

FUSE,30 Amp, Type B

30A

1шт.

Included On Main Rear Harness

1шт.

4

5190333

FUSE,40A, Maxi, Orange

40A

1шт.

Included On Main Rear Harness

1шт.

4

87589225

FUSE,70A

70A

1шт.

Included On Main Rear Harness

1шт.

4

84183837

FUSE,80A, Maxil, Natural

80A

1шт.

Included On Main Rear Harness

1шт.

4

82033971

FUSE,100A, Maxi, Violet

100A

1шт.

Included On Main Rear Harness

1шт.

5

87301874

FUSE BOX

Fuse Box

1шт.

6

82035657

COVER

Fuse Box

1шт.

7

82039691

FUSE BOX

2шт.

8

87301875

FUSE BOX

Relay Box

1шт.

9

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

Выбрано товаров: 33
