Запчасти Case IH MAXXUM 115 (1.82.7/32) - TWO MID MOUNTED REMOTE VALVES - PIPES AND VALVE (VAR.331560-332560-331561-332561) (07) - HYDRAULIC SYSTEM

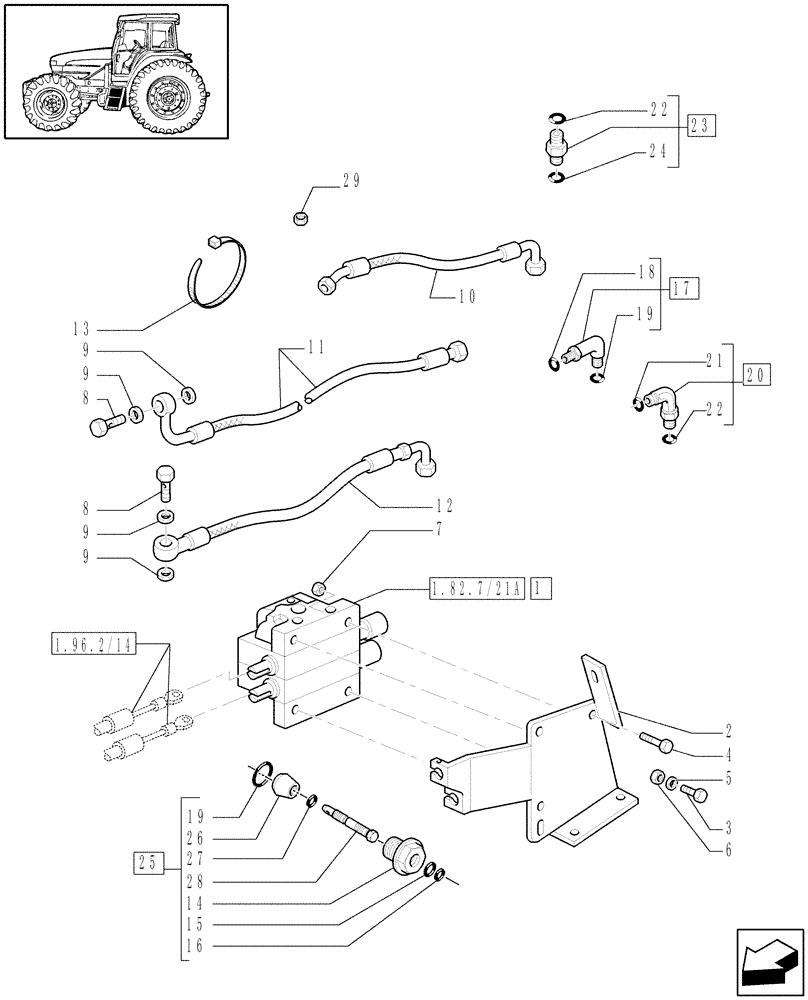

Схема запчастей Case IH MAXXUM 115 - (1.82.7/32) - TWO MID MOUNTED REMOTE VALVES - PIPES AND VALVE (VAR.331560-332560-331561-332561) (07) - HYDRAULIC SYSTEM
25
8
1
9
7
11
12
9
18
3
17
5
27
23
9
4
1.96.2/14
15
22
1.82.7/21a
28
19
24
8
9
19
14
22
29
16
20
6
10
21
2
13
26

Артикул

Название

Примечание

Количество

1

87324660

CONTROL VALVE

ASSY

1шт.

2

87568641

BRACKET

1шт.

3

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10 x 35

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

43362

NUT,M8 x 1.25, Cl 10

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12x1.25x40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

87325050

HYDRAULIC HOSE

Load Sense, 2050MM, Serial Range: -C5847

1шт.

10

87708268

HOSE

, Start Serial: D5847

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

Return, 680 mm

1шт.

12

87736275

HYDRAULIC HOSE,15.88mm ID x 2000mm L, SAE 100R2

Feed, 2000MM

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

87370071

BODY

M27x2

1шт.

15

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

16

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27X2, Incl. 18, 19

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

2шт.

20

5194728

90 ELBOW

M22x1.5

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

23

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

2шт.

24

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

25

87372883

SPOOL

ASSY

1шт.

26

47135841

PLUG

1шт.

27

11087876

CIRCLIP,M7

1шт.

28

87363956

SPECIAL BOLT

1шт.

29

47123020

PLUG,Hex

13/16 - 16

1шт.

29

83987627

CAP,1-14UN-2A

1" - 14

1шт.

Выбрано товаров: 32
