Запчасти Case IH MAXXUM 115 (1.82.7/24) - NAR LOADER READY WITH MECHANICAL JOYSTICK AND 3 ELEMENTS MID MOUNT VALVES - CONTROL VALVE AND PIPES (VAR.331820-333820 / 743747) (07) - HYDRAULIC SYSTEM

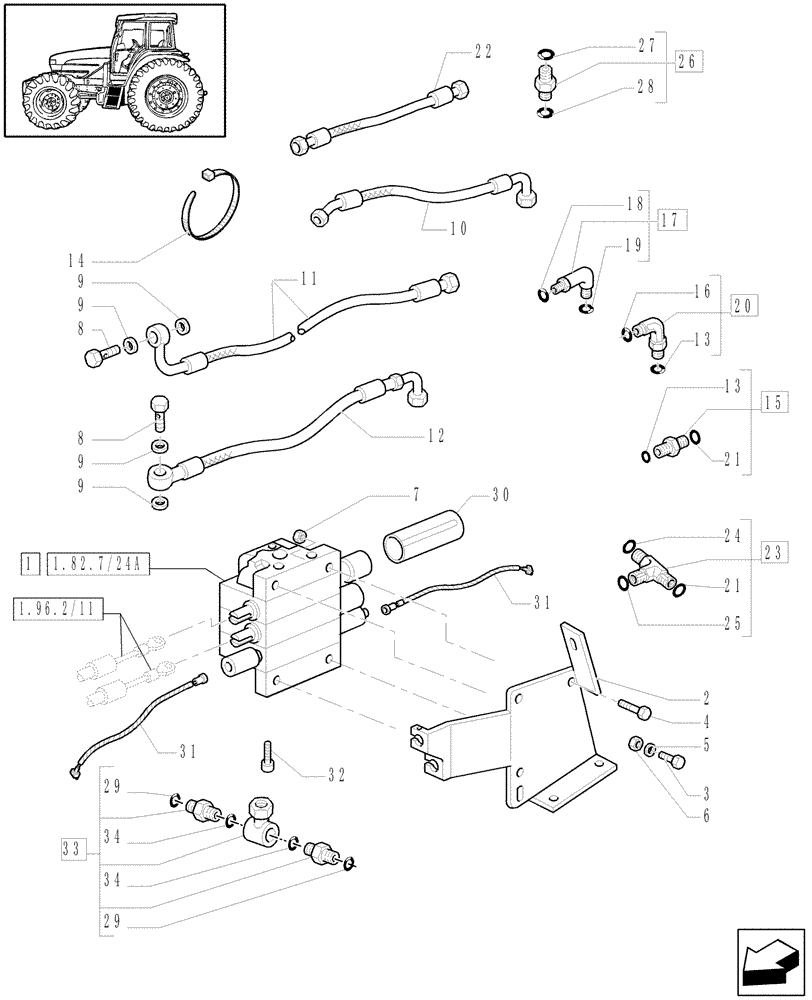

Схема запчастей Case IH MAXXUM 115 - (1.82.7/24) - NAR LOADER READY WITH MECHANICAL JOYSTICK AND 3 ELEMENTS MID MOUNT VALVES - CONTROL VALVE AND PIPES (VAR.331820-333820 / 743747) (07) - HYDRAULIC SYSTEM
6
17
34
13
27
22
24
9
9
13
11
28
29
21
25
1
32
30
9
7
26
12
19
16
31
10
2
14
21
8
23
18
33
29
9
34
1.96.2/11
20
4
5
31
15
8
1.82.7/24a
3

Артикул

Название

Примечание

Количество

1

87324662

DISTRIBUTOR

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10x35

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12x1.25x40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

87325050

HYDRAULIC HOSE

Load Sense, 2050MM

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

Return, 680MM

1шт.

12

87736275

HYDRAULIC HOSE,15.88mm ID x 2000mm L, SAE 100R2

Feed, 2000MM

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

14

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

14560287

CABLE TIE,207.00mm L

COLLAR 13/16"-16 UN-2A/M22x1,5

1шт.

15

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1.78 x 12.42

1шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27x2

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

5194728

90 ELBOW

13/16"-16

1шт.

21

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

9/16"-18/M10x1

2шт.

22

87535356

FLEXIBLE HOSE

90 Duro, .301" ID x .070" Thk

1шт.

23

87314900

HYD CONNECTOR

1шт.

24

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

25

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

5185045

HYD CONNECTOR

9/16"-18/M12x1.5

1шт.

27

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

28

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

29

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

30

87324672

PROTECTION CAP

1шт.

31

87389074

ELECTRIC CABLE

2шт.

32

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

33

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

34

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

Выбрано товаров: 36
