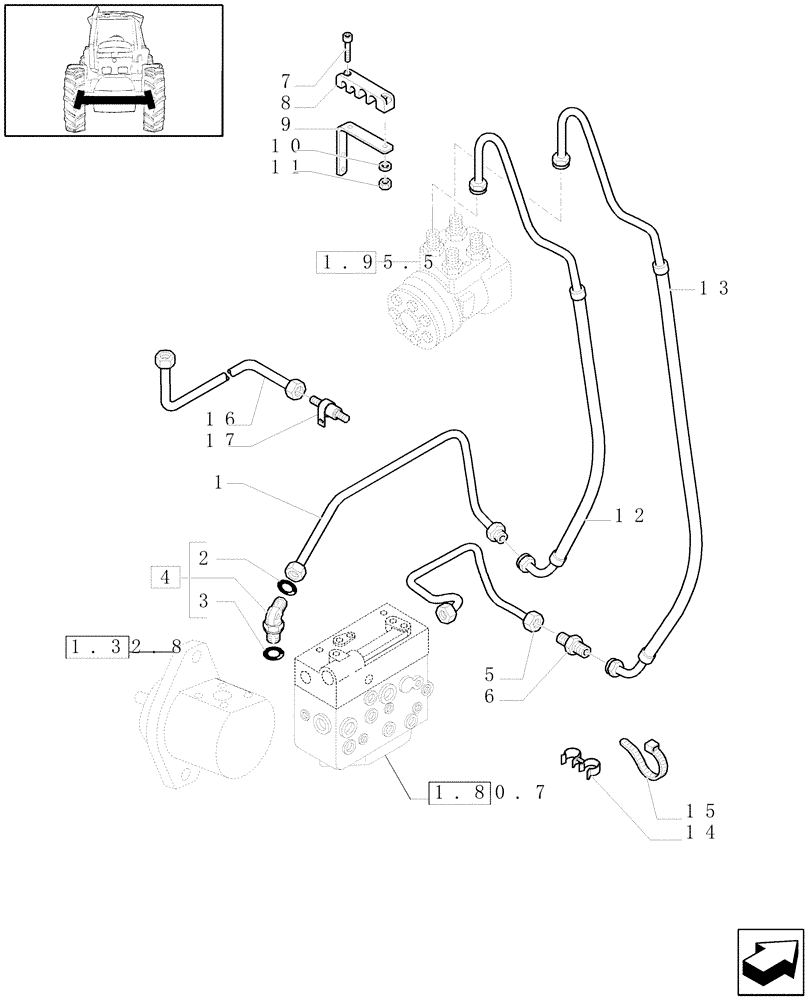

Запчасти Case IH MAXXUM 115 (1.42.0/06) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 16X16 - POWER STEERING PIPES (VAR.330830) (04) - FRONT AXLE & STEERING

1

87326939

PIPE

1"-14, Serial Range: -C6416

1шт.

2

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5185562

ELBOW

1"-14,M18x1.5, Includes Ref. 2, 3

1шт.

5

87367837

RIGID TUBE,16 mm DIA x 277, 94 mm L

1шт.

6

82030315

HYD CONNECTOR

1"-14UNF, 13/16"-16UNF

1шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

47123528

CLAMP

1шт.

9

47124243

BRACKET

1шт.

10

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

11

16100821

NUT,M8, Cl 10

2шт.

12

82036340

HYD TUBE

Feed

1шт.

13

82036341

HYD TUBE

Return

1шт.

14

82035888

CLIP,16mm

1шт.

15

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

16

84169692

TUBE,16 mm OD

, Start Serial: D6416

1шт.

17

84169700

FILTER

, Start Serial: D6416

1шт.
