Запчасти Case IH MAXXUM 115 (1.29.6/03[01]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 16X16 - GEARBOX CONTROL PIPES (VAR.330830) (03) - TRANSMISSION

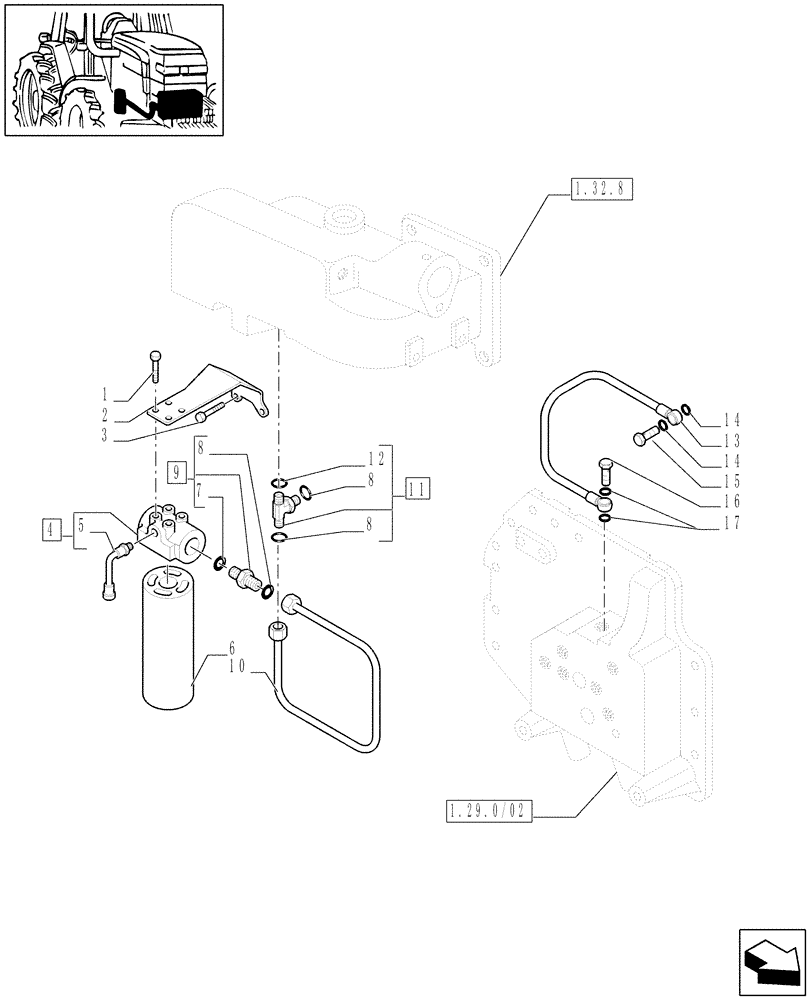

Схема запчастей Case IH MAXXUM 115 - (1.29.6/03[01]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 16X16 - GEARBOX CONTROL PIPES (VAR.330830) (03) - TRANSMISSION
4
14
8
8
13
10
5
8
9
3
12
15
7
1
1.32.8
1.29.0/02
16
17
11
2
14
6

Артикул

Название

Примечание

Количество

1

81821827

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

47124353

BRACKET

1шт.

3

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

4

5185368

FILTER HEAD

1шт.

5

82015028

SWITCH ASSY

Oil Pressure

1шт.

6

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

Charge Pump

1шт.

7

5185506

O-RING,23.47mm ID x 2.95mm Width

1шт.

8

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

9

5185521

HYD CONNECTOR

1-1/16"-12,1"-14

1шт.

10

87326941

PIPE

1-14

1шт.

11

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

1-14, M18x1.5

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

47123594

HYD TUBE

1шт.

14

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

2шт.

15

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

16

5196881

BANJO BOLT

M18x1.5

1шт.

17

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

Выбрано товаров: 17
