Запчасти Case IH MAXXUM 115 (1.40. 6/05) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - SUPPORT (VAR.330408) (04) - FRONT AXLE & STEERING

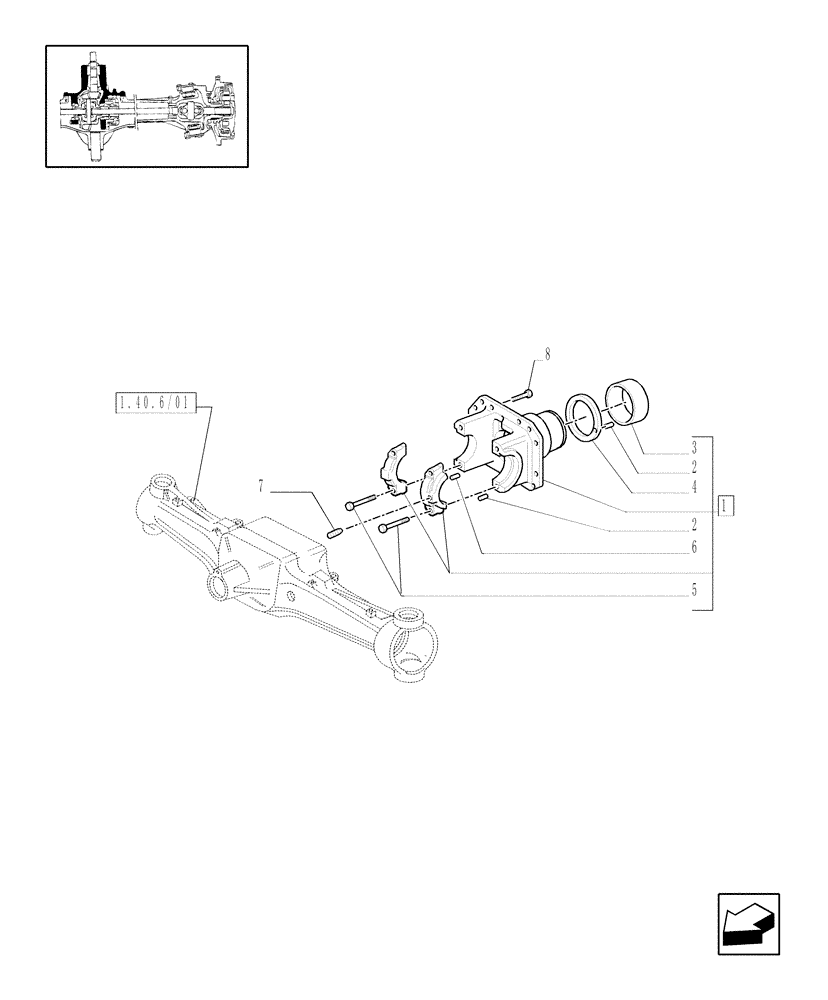

Схема запчастей Case IH MAXXUM 115 - (1.40. 6/05) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - SUPPORT (VAR.330408) (04) - FRONT AXLE & STEERING
1
3
2
6
1.40.6/01
7
4
8
5
2

Артикул

Название

Примечание

Количество

1

87329356

SUPPORT

ASSY

1шт.

2

4966244

PIN,5mm OD x 15mm L

1шт.

3

5136116

BUSHING,105mm ID x 115.56mm OD x 72mm L

1шт.

4

5136115

RING,105.3mm ID x 148mm OD x 5mm Thk

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

10333210

DOWEL,M4 x 10.00mm

1шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

Выбрано товаров: 8
