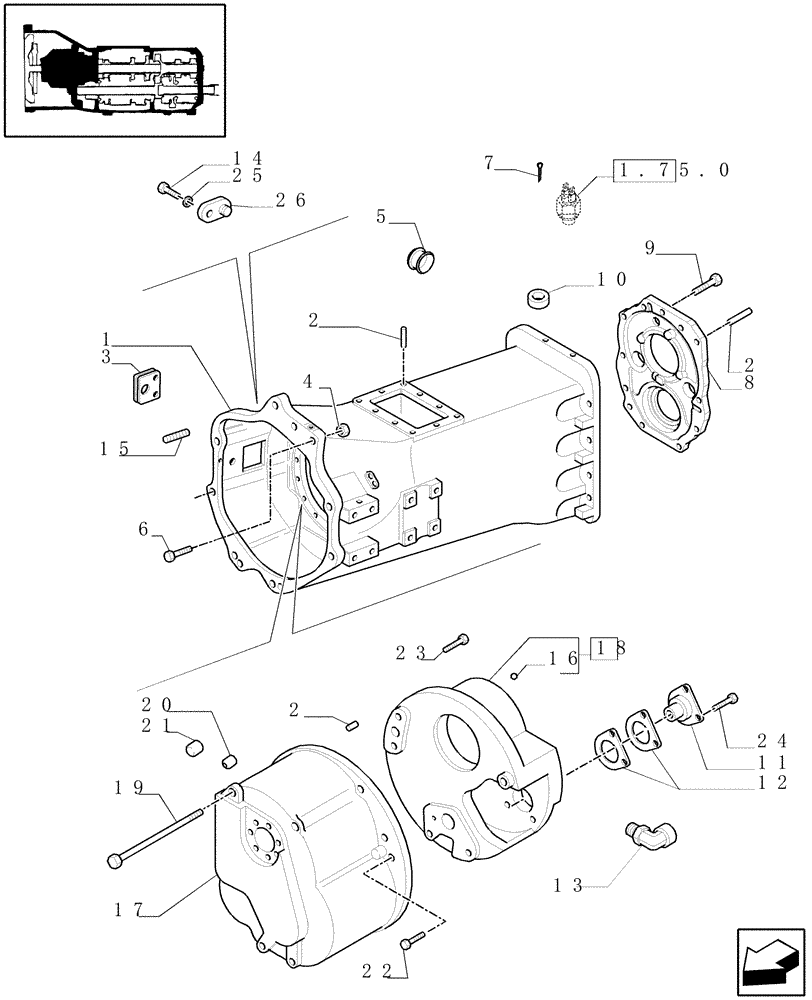

Запчасти Case IH MAXXUM 115 (1.21.0/01[01]) - TRANSMISSION 24X24 (40 KM/H) - GEARBOX HOUSING, COVERS AND RELATED PARTS (STD + VAR.330282) (03) - TRANSMISSION

1

47132498

TRANSMISSION HOUSING

1шт.

2

83980528

DOWEL,12.71mm OD x 20.57mm L

12шт.

3

81878975

GROMMET,82mm

1шт.

4

12164124

NUT,M16 x 1.5, Cl 8

2шт.

5

81878978

GROMMET

2шт.

6

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

6

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

3шт.

6

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

6

15981537

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

2шт.

7

10798204

COTTER PIN,M6.3 x 32

1шт.

8

5195012

RETAINER

1шт.

9

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

10шт.

10

14328701

PLUG,M20, Tapered

2шт.

11

87304629

RETAINER

1шт.

12

82008126

SHIM,49.6mm ID x 71mm OD x 0.08mm Thk

0.076MM

1шт.

12

82008127

SHIM,49.6mm ID x 71mm OD x 0.13mm Thk

0.127MM

1шт.

12

82008128

SHIM,0.305mm Thk

0.305MM

1шт.

12

82008198

SHIM,49.6mm ID x 71mm OD x 0.76mm Thk

0.762MM

1шт.

13

87537887

90 ELBOW

1шт.

Wet Differential, VAR.331333-332333

1шт.

14

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

15

86505157

DOWEL,1/2" x 1"

2шт.

16

82929174

BALL,8mm OD

1шт.

17

82006461

HOUSING

Incl. 2, 20, 21

1шт.

18

82015954

HOUSING

1шт.

19

15973021

BOLT,Hex, M10 x 1.25 x 170mm, Cl 8.8

3шт.

20

81866515

HYDRAULIC VALVE

1шт.

21

81872032

PLUG

4шт.

22

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

3шт.

23

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

23

11107224

BOLT,Hex, M10 x 50mm, Cl 8.8

1шт.

23

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

23

11108021

BOLT,Hex, M10 x 90mm, Cl 8.8

1шт.

24

16043637

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

25

12601278

LOCK WASHER

1шт.

26

87307348

PLUG,18mm ID

1шт.
