Запчасти Case IH MAXXUM 115 (0.14.0/03[01]) - INJECTION PUMP (STD + VAR.330003-332115-332116) (01) - ENGINE

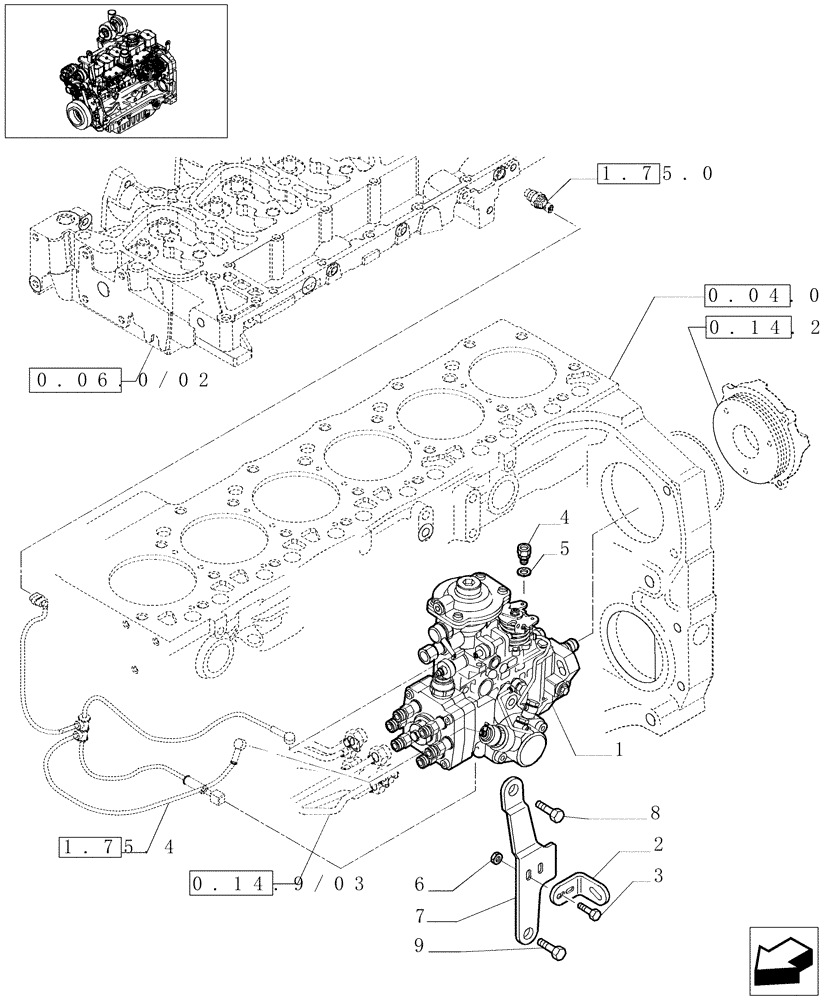

Схема запчастей Case IH MAXXUM 115 - (0.14.0/03[01]) - INJECTION PUMP (STD + VAR.330003-332115-332116) (01) - ENGINE
8
7
5
3
2
0.14.2/01
1.75.4
1.75.0
0.06.0/02
0.04.0/02
0.14.9/03
1
6
9
4

Артикул

Название

Примечание

Количество

1

2855396

FUEL INJECTION PUMP

ASSY, MAX 115

1шт.

1

2855396R

REMAN-FUEL INJ PUMP

Maxxum 115, Mechanical Inj. Pump, Use w/ Eng. P/N 87318901 Tier 3

1шт.

1

2855396C

CORE-FUEL INJ PUMP

Return Number

1шт.

1

2855392

FUEL INJECTION PUMP

ASSY, MAX 125

1шт.

1

2855392R

REMAN-INJECTION PUMP

Maxxum 125, Mechanical Inj. Pump, Use w/Eng. P/N 87318900, Tier 3

1шт.

1

2855392C

CORE-INJECTION PUMP

Return Number

1шт.

87474152

SOLENOID

Fuel shut-off

1шт.

1

2855394

FUEL INJECTION PUMP

ASSY, MAX 140

1шт.

1

2855394R

REMAN-INJECTION PUMP

Maxxum 140, Mechanical Inj. Pump, Use w/ Eng. P/N 87318899 Tier 3

1шт.

1

2855394C

CORE-INJECTION PUMP

Return Number

1шт.

2

2830713

BRACKET

1шт.

3

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

3шт.

4

2853811

BALL STUD,M6

1шт.

5

2853812

SPRING,6mm ID x 12mm OD

1шт.

6

4899003

FLANGE NUT,M8 x 1.25

3шт.

7

2830688

BRACKET

1шт.

8

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

9

4895327

BOLT,Hex, M12 x 1.75 x 20mm

1шт.

Выбрано товаров: 18
