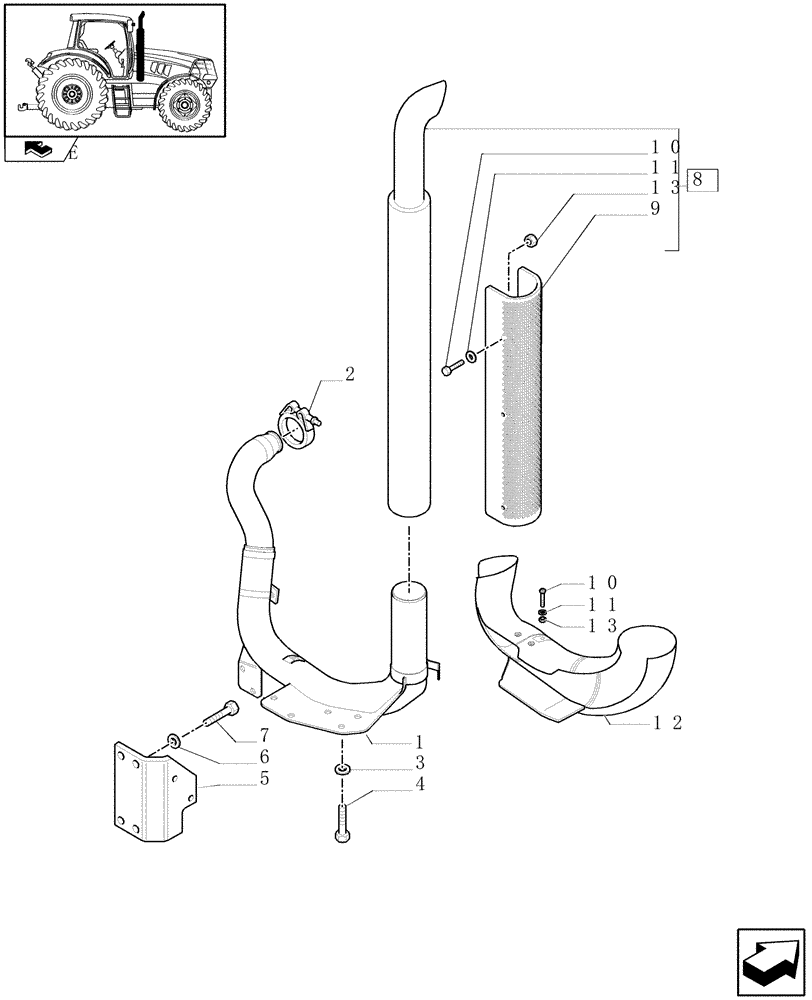

Запчасти Case IH MAXXUM 115 (1.15.1/01) - SILENCER (02) - ENGINE EQUIPMENT

1

87305755

EXHAUST SYSTEM PIPE

Incl. Ref. 12

1шт.

2

82033948

CLAMP

1шт.

2

87524289

CLAMP,81mm

Stamped NORMA

1шт.

3

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

7шт.

4

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

7шт.

5

82036784

SUPPORT

Muffler bracket for Less Loader Ready

1шт.

6

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

4шт.

7

11115521

SCREW,Hex, M14 x 30mm, Cl 8.8

M14 x 2 x 30

4шт.

8

82027845

MUFFLER

MM1712

1шт.

With High Profile Roof

1шт.

8

87324754

MUFFLER

1562MM

1шт.

With Low Profile Roof (St. Valentine Production Models only)

1шт.

9

82035359

SHIELD

1шт.

10

14759521

SCREW,M6 x 14mm

M6 x 14

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

12

87305791

SHIELD

1шт.

13

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.
