Запчасти Case IH MAXXUM 115 (1.14.7) - MAIN FUEL TANK SUPPORT (02) - ENGINE EQUIPMENT

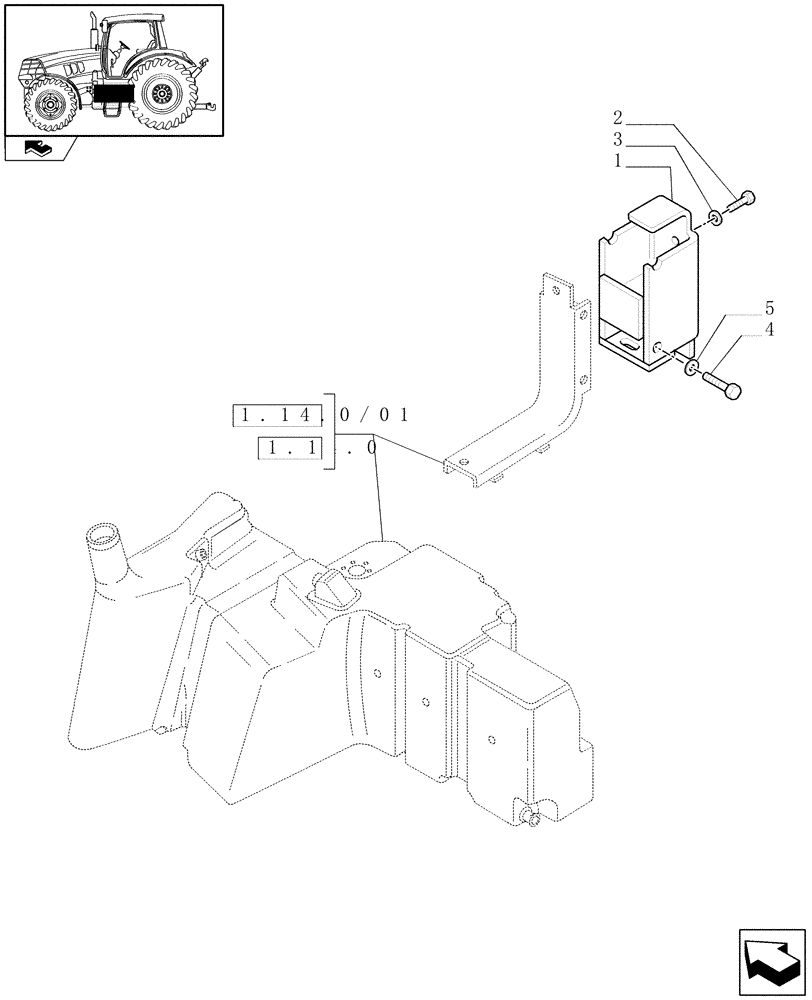

Схема запчастей Case IH MAXXUM 115 - (1.14.7) - MAIN FUEL TANK SUPPORT (02) - ENGINE EQUIPMENT
4
3
1.14.0
1.14.0/01
home
2
1
5

Артикул

Название

Примечание

Количество

1

87490455

HOLDER

1шт.

2

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

4

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

2шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

Выбрано товаров: 5
