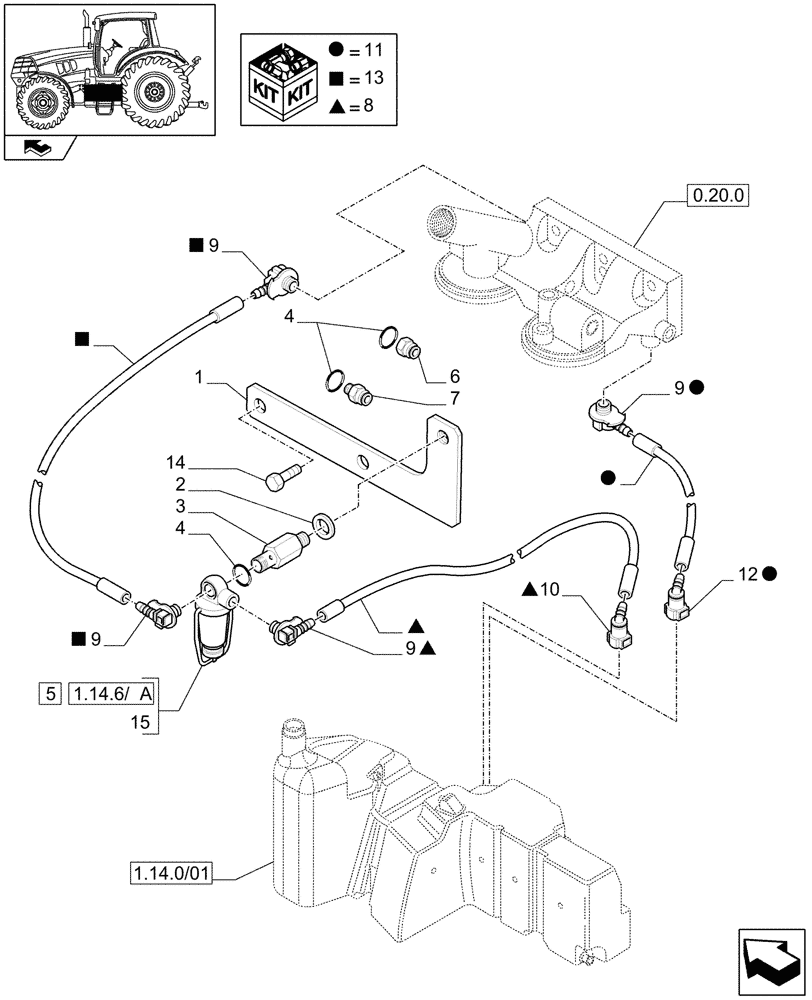

Запчасти Case IH MAXXUM 115 (1.14.6/01) - FUEL LINES (02) - ENGINE EQUIPMENT

1

87591419

HOLDER

Fuel Filter

1шт.

2

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

3

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

M12 x 1.75 / M14 x 1.5

1шт.

4

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

5

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Biodiesel Compatible, Start Serial: D6809

1шт.

6

4893833

HYD CONNECTOR

M14 x 1.5

1шт.

7

87585673

HYD CONNECTOR

M14 x 1.5

1шт.

8

87696294

FUEL HOSE,6mm ID x 920mm L

Fuel Feed

1шт.

9

82028482

FITTING

4шт.

10

82028479

FITTING

Red

1шт.

11

82028475

FUEL TUBE,8mm OD X 960 mm

Fuel Return, Serial Range: -C6857

1шт.

11

84356045

FUEL TUBE,11mm OD X 750mm

Fuel Return, Start Serial: D6857

1шт.

12

82028480

COUPLING, QUICK, FEM

Green

1шт.

13

87591975

TUBE,8 mm OD x 550 mm L

Fuel Feed

1шт.

14

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

15

87592298

FILTER ASSY

Biodiesel Compatible, Serial Range: -C6809

1шт.
