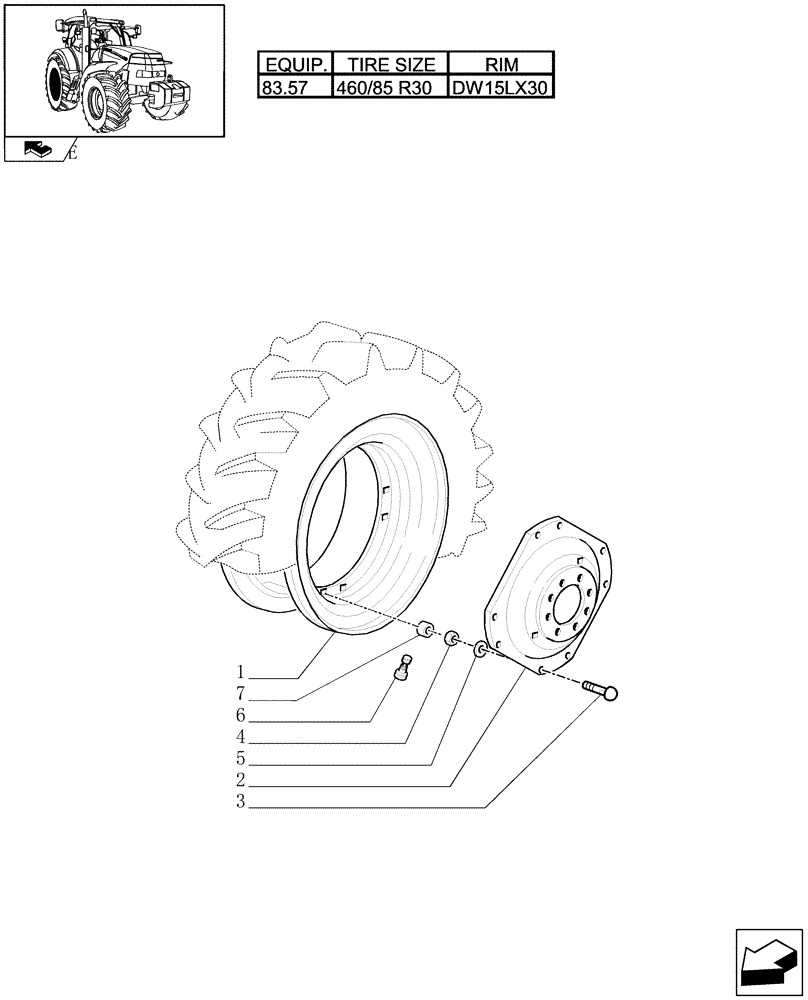

Запчасти Case IH MAXXUM 115 (83.00[06]) - REAR WHEELS (11) - WHEELS/TRACKS

1

87537821

RIM

DW15L x 30

2шт.

2

82037278

WHEEL DISC

28"

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

16шт.

4

12164124

NUT,M16 x 1.5, Cl 8

16шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

8шт.
