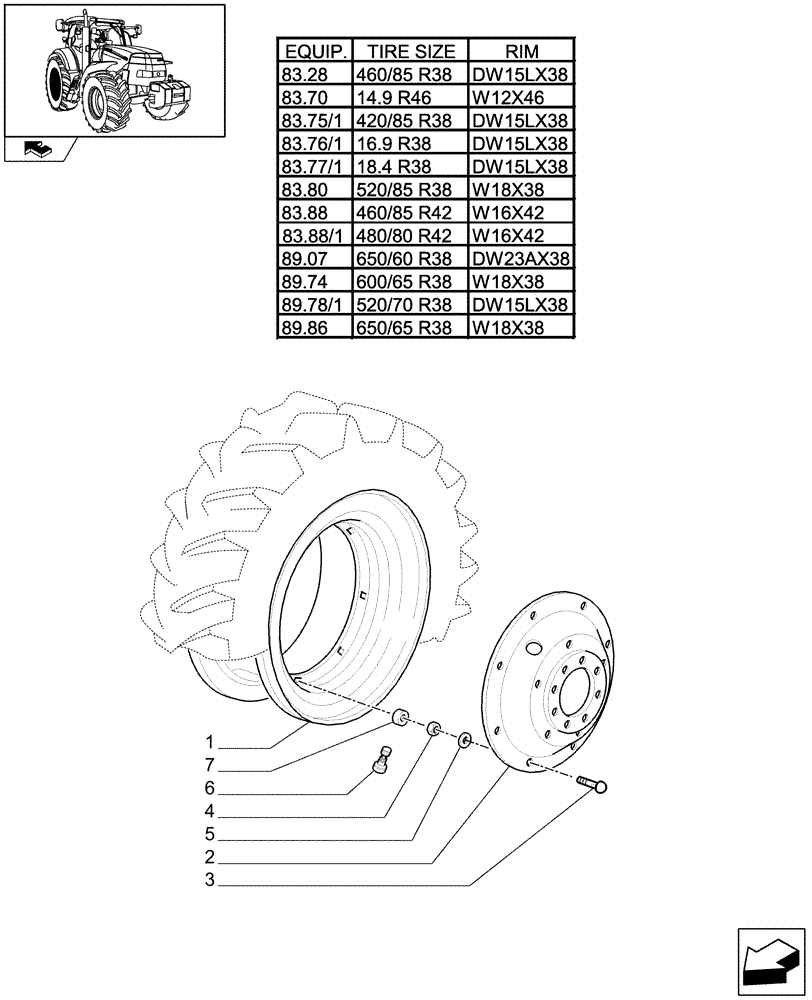

Запчасти Case IH MAXXUM 115 (83.00[05]) - REAR WHEELS (11) - WHEELS/TRACKS

1

82031161

RIM,DW12X46, 304.8mm W, 8 Bolts, Case Silver

W12 x 46

2шт.

1

82031169

RIM,DW16LX42, 406.4mm W, 8 Bolts, Case Silver

W16 x 42

2шт.

1

82031159

RIM

W18 x 38

2шт.

1

87520404

RIM

DW15L x 38

2шт.

1

87653119

RIM

RIM, DW23A x 38

2шт.

2

82031195

WHEEL DISC,787.4mm D, 8 Bolts, Case Silver

36"

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

16шт.

4

12164124

NUT,M16 x 1.5, Cl 8

16шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

8шт.
