(1.93.3/ A[05]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH MAXXUM 115 (1.93.3/ A[05]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

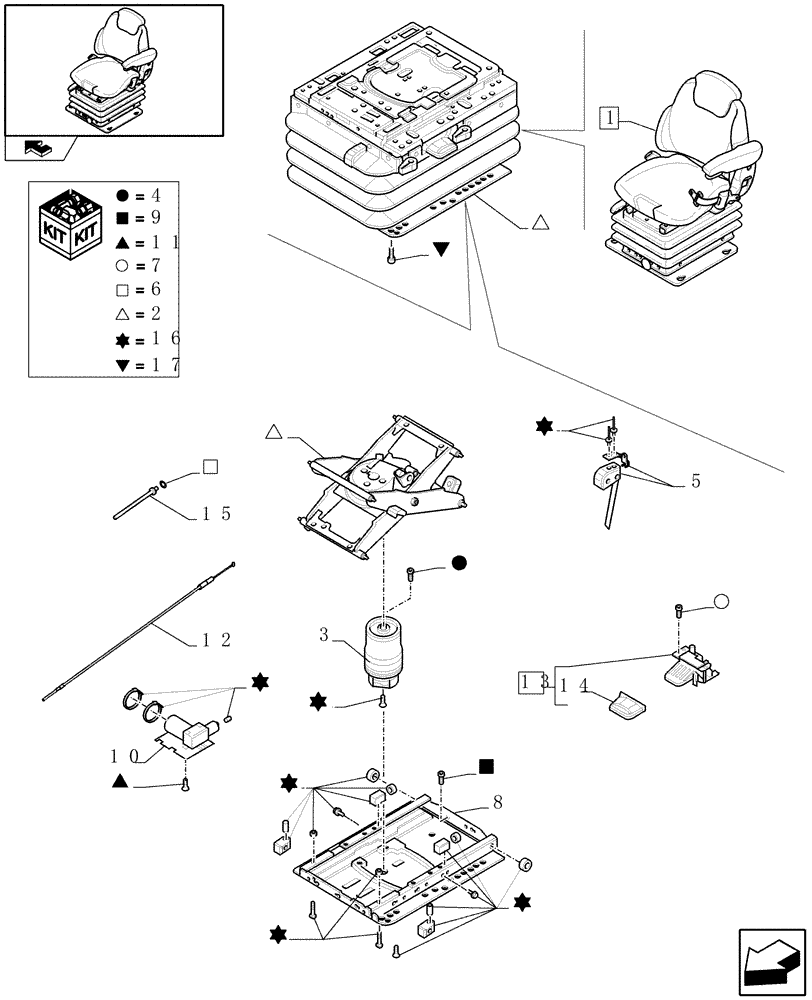

Схема запчастей Case IH MAXXUM 115 - (1.93.3/ A[05]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
13
9
5
17
11
7
1
16
7
16
9
16
2
16
10
4
14
6
17
4
9
2
2
11
16
home
4
2
6
11
15
16
3
17
6
8
16
12
7
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY, Incl. 2-17

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl. in 1, Incl. 17

1шт.

3

84190972

SHOCK ABSORBER

Incl. 4, 16

1шт.

4

84191012

REPAIR KIT

1шт.

5

84190962

KIT

Incl. 16

1шт.

6

84191016

REPAIR KIT

1шт.

7

84191017

REPAIR KIT

1шт.

8

84190976

PLATE

Incl. 9, 16

1шт.

9

84191014

REPAIR KIT

1шт.

10

84190980

AIR COMPRESSOR

Incl. 11, 16

1шт.

11

84191008

REPAIR KIT

1шт.

12

84190997

BOWDEN CONTROL

Incl. 7

1шт.

13

345107A1

LEVER

1шт.

14

84191000

HANDLE

Incl. 6

1шт.

15

84190991

TUBE

1шт.

15

84191077

TUBE

1шт.

16

84190975

REPAIR KIT

1шт.

17

84191020

REPAIR KIT

1шт.
